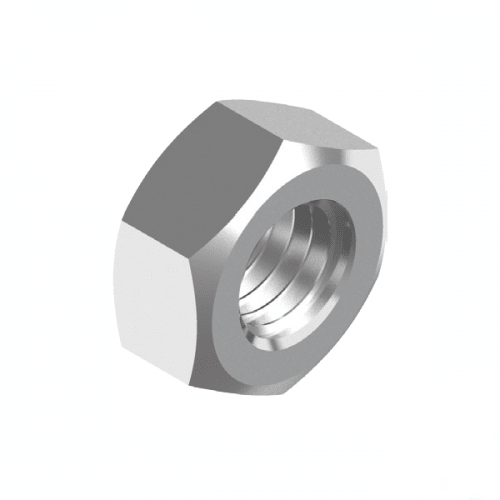

1/2" BSW Hex Nut, 316 Stainless Steel - XNUA412BSW

The BSW Standard Hex Nut, 316 Stainless Steel is available in 4 sizes (5/32" to 1/2") and is a six-sided nut that screws onto a bolt, stud or threaded rod and is tightened with a spanner or socket.

You can choose from 4 variants, covering sizes 5/32" to 1/2". Pack quantities depend on size: packs of 100 to 200.

A4 (316) stainless steel contains molybdenum (about 2 to 3 per cent), which improves its resistance to chlorides. It is the grade normally chosen for coastal, pool, marine and food-processing settings, and it costs more than A2 (304). BSW (British Standard Whitworth) is an older inch-based thread found on older machinery and imported equipment. It is not interchangeable with UNC or metric threads.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Stainless threads can gall (seize) when tightened under load or at speed. A smear of anti-seize on the thread and a steady tightening speed reduce the risk.

Where this product is used

• Food, beverage and chemical plant fittings
• Small sizes for enclosures, instruments and light fittings
• Food and beverage processing equipment
• General engineering and maintenance fastening
• Marine, coastal and washdown assemblies
• Larger sizes for frames, plant and structural fixings

Features

• Whitworth sizing for repairs to older equipment
• Range covers 5/32" to 1/2" in 4 variants
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Matches bolts and studs of the same thread
• Hex form for spanner or socket tightening
• Pack quantities to suit trade and bulk buying: packs of 100 to 200

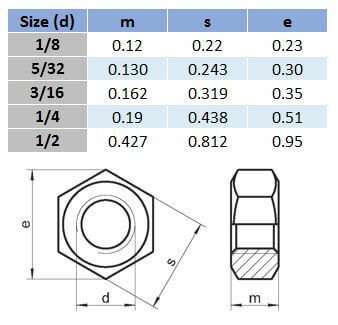

Key specifications

Selecting the right option

Match the nut to the bolt: thread system, diameter and pitch must all agree, and metric, UNC and BSW nuts do not interchange. Where a nut is tightened repeatedly, use anti-seize, because stainless threads can gall. For indoor and general outdoor use where chlorides are not a concern, the A2 (304) version is the lower-cost option: BSW Standard Hex Nut - 304 Stainless Steel.

Related products

Other versions in this range: Metric Standard Hex Nut - 304 Stainless Steel and UNC Standard Hex Nut - 304 Stainless Steel. Matching products: BSW Hex Set Bolt (Full Thread) - 316 Stainless Steel.
