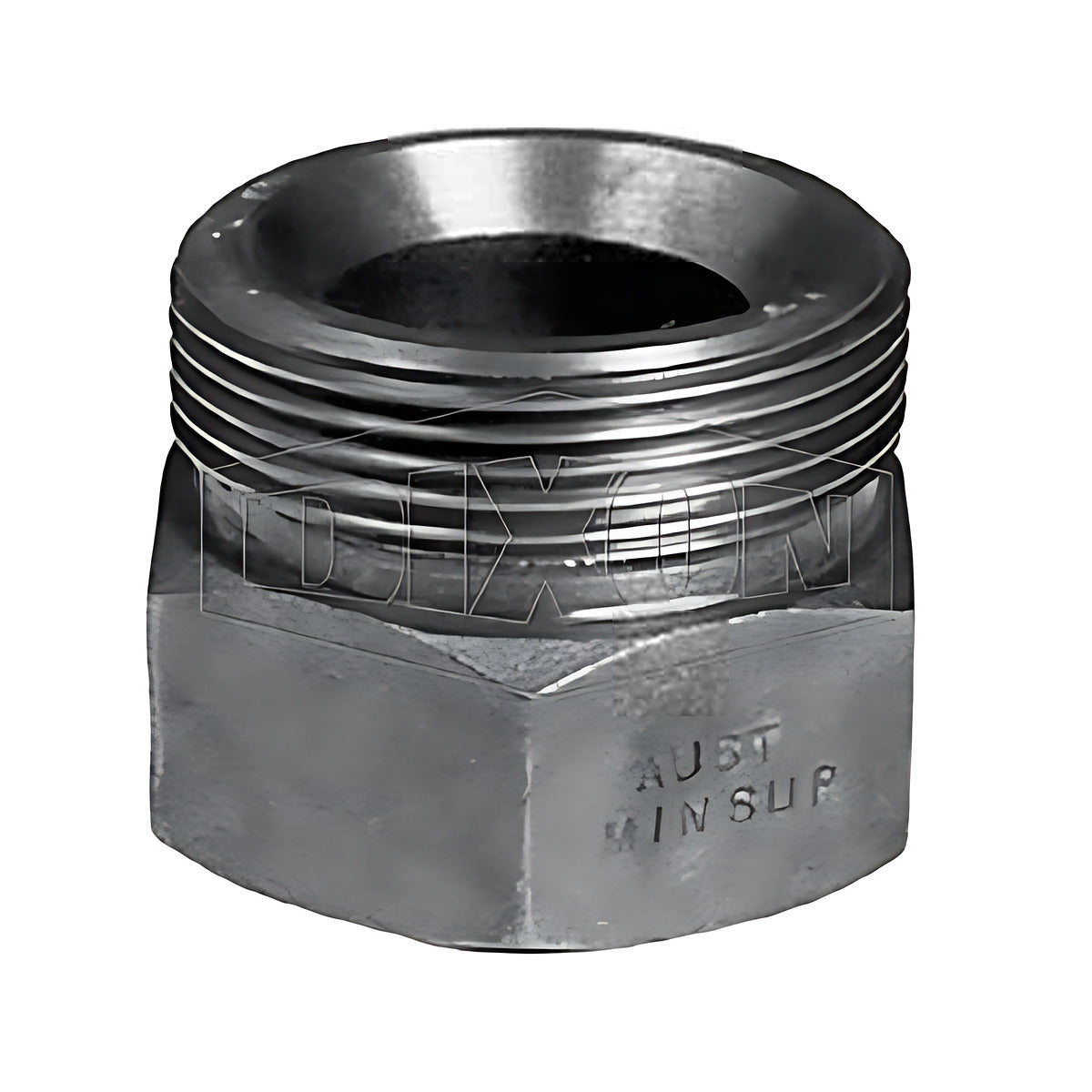

Dixon 08/014/02/002 Minsup Ground Joint Female Spud BSP, 50 mm (2")

This Dixon Minsup ground joint female spud has a female BSP thread and is listed for 50 mm (2") nominal bore. Dixon describes the spud as the half of the ground joint that is usually fixed to the plant (manufacturer-stated).

The body is SG iron (ISO 1083-400-250-15) with a zinc plated finish (AS1789), and the wing nut thread is 8 TPI (manufacturer-stated). The two halves of the joint are connected and disconnected by turning the wing nut on the spud.

Where this product is used

• Fixed connection point on plant, where a hose fitted with a nut and tail is connected and disconnected as needed (manufacturer-stated).
• Ground joint couplings in 50 mm (2") hose lines that need a female BSP thread at the spud.

Features

• Female BSP spud for the Minsup 50 mm (2") ground joint (manufacturer-stated)
• Body: SG iron (ISO 1083-400-250-15), zinc plated (AS1789) (manufacturer-stated)
• Wing nut thread: 8 TPI (manufacturer-stated)
• Connected and disconnected by turning the wing nut on the spud (manufacturer-stated)

Key specifications

Selecting the right option

Match the thread to your plant port first. This part is the female BSP spud; Dixon lists a male BSP spud (08/014/02/005) and a double spud (08/014/02/004) in the same 50 mm range, so check which style your pipework needs. A complete joint also needs a wing nut and a nut and tail, which are listed separately (see Related products).
