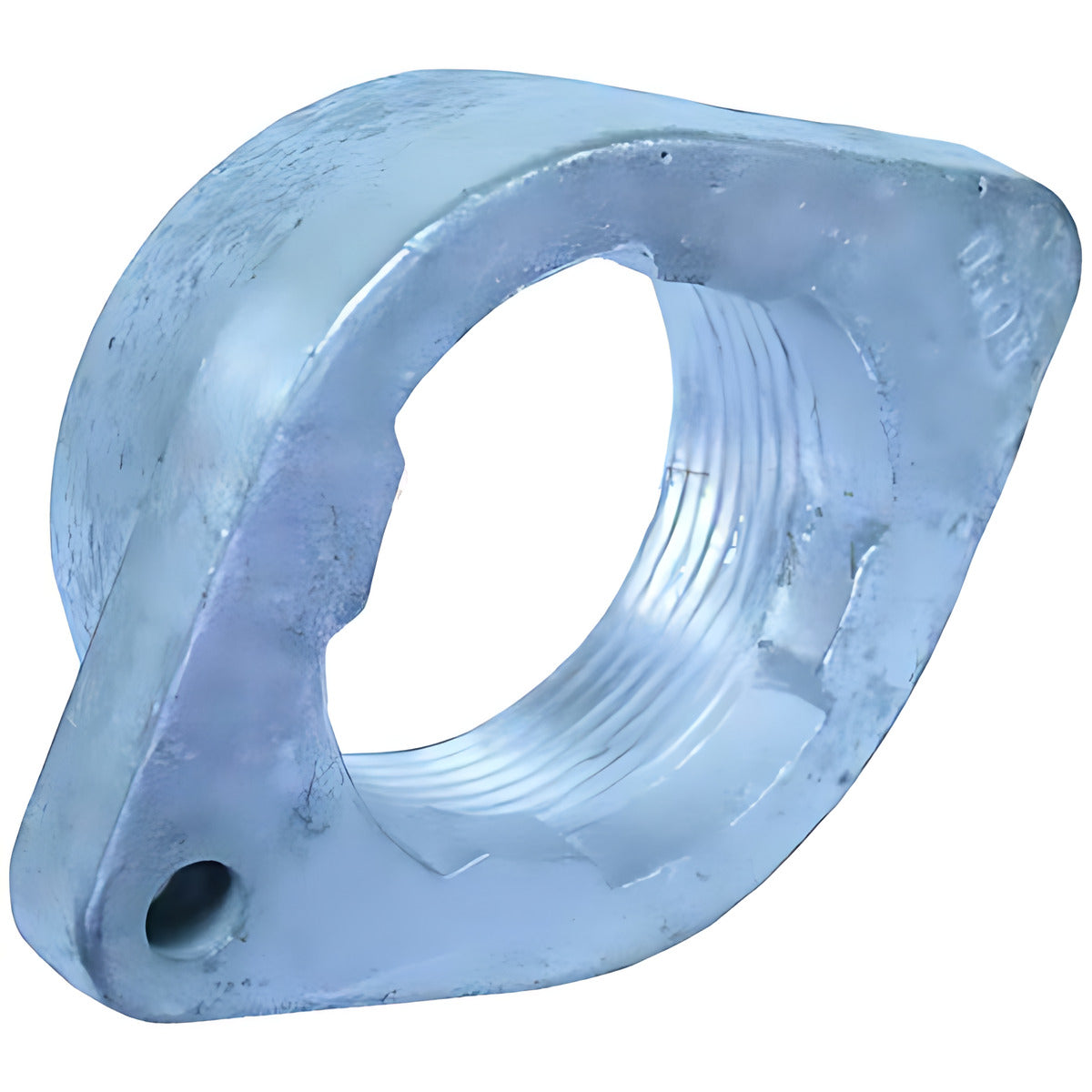

Dixon 08/014/02/007 Minsup Ground Joint Wing Nut, 50 mm (2")
Available
This Dixon wing nut is the 50 mm (2") nut for the Minsup ground joint. Turning the wing nut on the spud connects or disconnects the two halves of the joint (manufacturer-stated).
Dixon lists the wing nut thread as 8 TPI, and the range material as SG iron (ISO 1083-400-250-15) with a zinc plated finish (AS1789) (manufacturer-stated).
Where this product is used
- Making up and breaking the 50 mm (2") Minsup ground joint by hand (manufacturer-stated).
- Spare wing nut for a 50 mm (2") ground joint spud.
Features
- Wing nut for the Minsup 50 mm (2") ground joint (manufacturer-stated)
- Wing nut thread: 8 TPI (manufacturer-stated)
- Material: SG iron (ISO 1083-400-250-15), zinc plated (AS1789) (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Part type | Wing nut |
| Size | 50 mm (2" nominal bore ID) |
| Material | SG iron to ISO 1083-400-250-15, zinc plated to AS1789 (manufacturer-stated) |
| Range thread designations | Wing nut 8 TPI; BSP tapered male to ISO 7-1; BSP parallel female to ISO 7-1 (manufacturer-stated) |
| Dixon part number | 08/014/02/007 |
Selecting the right option
The wing nut is a separate part in this range, so a complete joint needs a spud, a nut and tail and a wing nut. Before you order, check that the nut turns freely on the spud thread and that the nut size is 50 mm (2") to match the rest of the joint.
Related products
Other parts in the Dixon 50 mm (2") ground joint range: Dixon 08/014/02/002 2" (50mm) Ground Joint Spud Female BSP, Dixon 08/014/02/004 2" (50mm) Ground Joint Double Spud, Dixon 08/014/02/005 2" (50mm) Ground Joint Spud Male BSP, Dixon 08/014/02/008 2" (50mm) Ground Joint Tail and Dixon 08/014/02/009 2" (50mm) Ground Joint Cor-O-Zig Tail.
