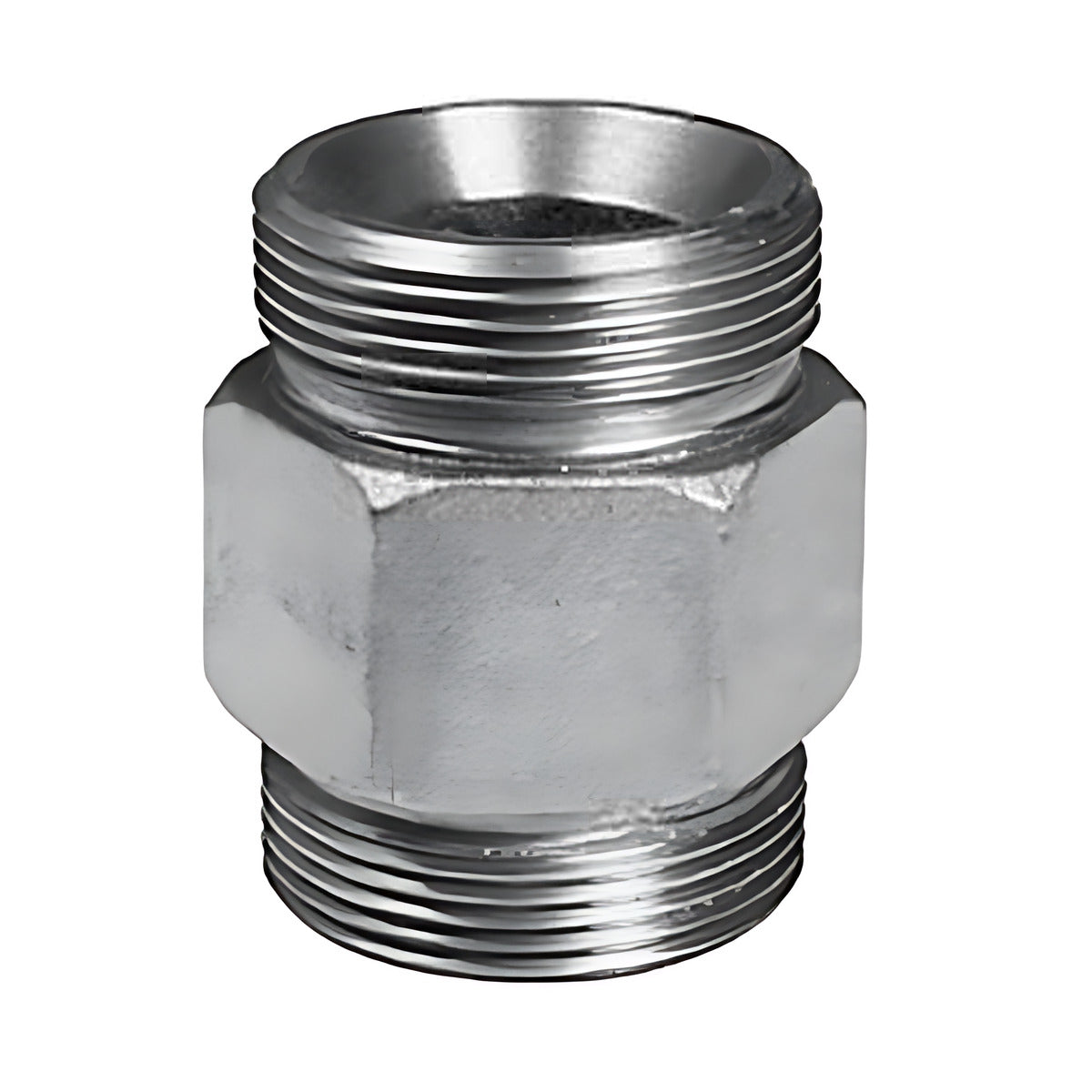

Dixon 08/014/02/004 2" (50mm) Ground Joint Double Spud
Out of stock
This Dixon Minsup ground joint double spud is the third spud style in the 50mm (2") BSP ground joint range, alongside the female spud (08/014/02/002) and the male spud (08/014/02/005). It suits 50mm (2") nominal bore. The range is SG iron (ISO 1083-400-250-15) with a zinc plated finish (AS1789), and the wing nut thread is 8 TPI.
The spud is the part of the connection that is usually fixed to the plant.
Where this product is used
- Ground joint connections in 50mm (2") lines that use the double spud style
- Fixed points on plant where the spud stays in place and the hose side is connected and disconnected by the wing nut
Features
- Double spud, BSP, for the Minsup 50mm (2") ground joint
- Material: SG iron (ISO 1083-400-250-15), zinc plated (AS1789)
- Wing nut thread: 8 TPI
- Part type: Double spud, BSP
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Part type | Double spud, BSP |
| Size | 50mm (2" nominal bore ID) |
| Material | SG iron to ISO 1083-400-250-15, zinc plated to AS1789 |
| Range thread designations | Wing nut 8 TPI, BSP tapered male to ISO 7-1, BSP parallel female to ISO 7-1 |
| Dixon part number | 08/014/02/004 |
Choosing the right option
Other parts in the Dixon 50mm (2") ground joint range: Dixon 08/014/02/002 2" (50mm) Ground Joint Spud Female BSP, Dixon 08/014/02/005 2" (50mm) Ground Joint Spud Male BSP and Dixon 08/014/02/007 2" (50mm) Ground Joint Wing Nut.
