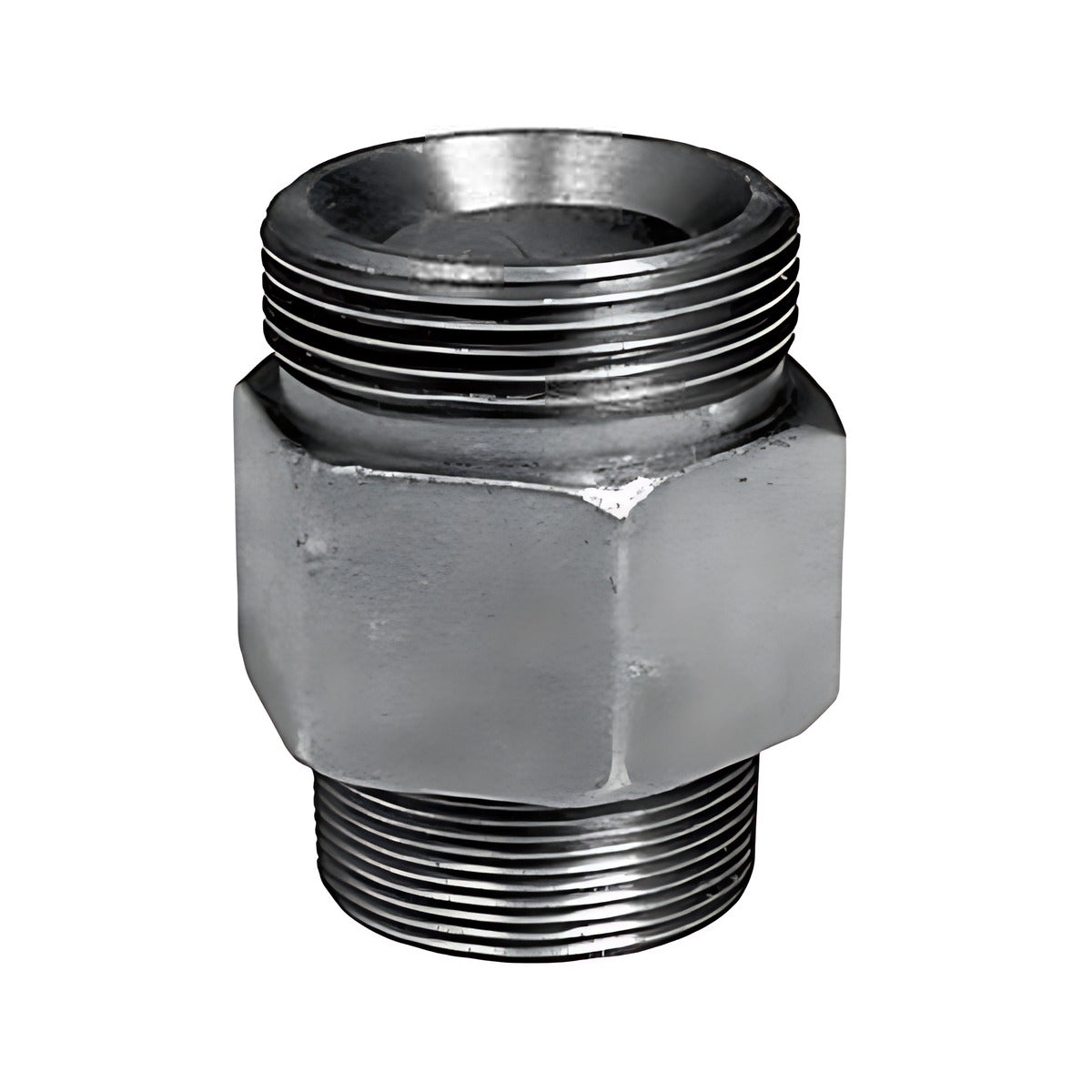

Dixon 08/014/02/005 Minsup Ground Joint Male Spud BSP, 50 mm (2")

This Dixon Minsup ground joint male spud has a male BSP thread and is listed for 50 mm (2") nominal bore. Dixon lists the male BSP thread in this range as tapered, to ISO 7-1 (manufacturer-stated).

The body is SG iron (ISO 1083-400-250-15) with a zinc plated finish (AS1789), and the wing nut thread is 8 TPI (manufacturer-stated). As with the other spuds in the range, it is the half that is usually fixed to the plant.

Where this product is used

• Fixed connection point on plant that needs a male BSP thread, such as a spud screwed into a female port (manufacturer-stated).
• Ground joint couplings in 50 mm (2") lines where the hose side is made up with a nut and tail.

Features

• Male BSP spud for the Minsup 50 mm (2") ground joint (manufacturer-stated)
• Male BSP thread, tapered, to ISO 7-1 (manufacturer-stated)
• Body: SG iron (ISO 1083-400-250-15), zinc plated (AS1789) (manufacturer-stated)
• Wing nut thread: 8 TPI (manufacturer-stated)

Key specifications

Selecting the right option

The tapered male BSP thread screws into a female port, so check the port thread before you order. If the plant port is male, the female spud (08/014/02/002) may suit better. A complete joint also needs a wing nut and a nut and tail, which are listed separately.
