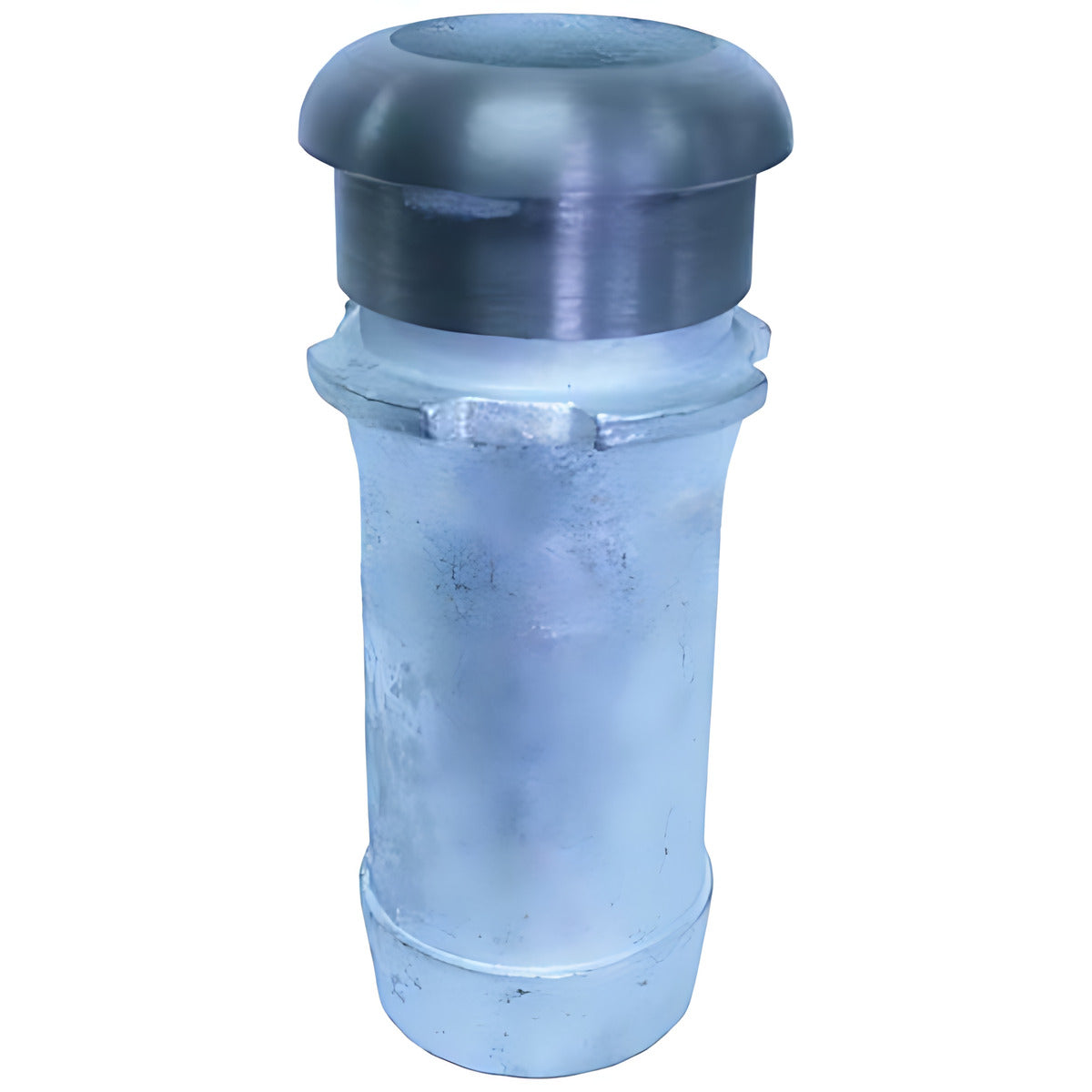

Dixon 08/014/02/008 2" (50mm) Ground Joint Tail
Available
This Dixon Minsup ground joint hose tail is the tail half of the nut and tail that is assembled onto a hose with a suitable clamp. It suits 50mm (2") nominal bore. The tail is designed to be used with Minsup clamp 08/023/03/000.
That clamp suits hose OD 65.5 to 71mm. The range is SG iron (ISO 1083-400-250-15) with a zinc plated finish (AS1789).
Where this product is used
- Hose end of a 50mm (2") ground joint, fitted to the hose with a suitable clamp
- Making a hose assembly that connects to a 50mm (2") ground joint spud fixed to plant
Features
- Hose tail for the Minsup 50mm (2") ground joint
- Designed to be used with Minsup clamp 08/023/03/000
- Material: SG iron (ISO 1083-400-250-15), zinc plated (AS1789)
- Part type: Hose tail
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Part type | Hose tail |
| Size | 50mm (2" nominal bore ID) |
| Material | SG iron to ISO 1083-400-250-15, zinc plated to AS1789 |
| Range thread designations | Wing nut 8 TPI, BSP tapered male to ISO 7-1, BSP parallel female to ISO 7-1 |
| Clamp named by Dixon | Minsup clamp 08/023/03/000 (hose OD 65.5 to 71mm) |
| Dixon part number | 08/014/02/008 |
Choosing the right option
Measure the outside diameter of your hose and choose the clamp from its hose OD range. The Minsup clamp for this tail (08/023/03/000) suits hose OD 65.5 to 71mm. The tail is the hose-side part only, so you also need a spud and a wing nut to complete the joint.
Other parts in the Dixon 50mm (2") ground joint range: Dixon 08/014/02/002 2" (50mm) Ground Joint Spud Female BSP, Dixon 08/014/02/004 2" (50mm) Ground Joint Double Spud and Dixon 08/014/02/005 2" (50mm) Ground Joint Spud Male BSP.
