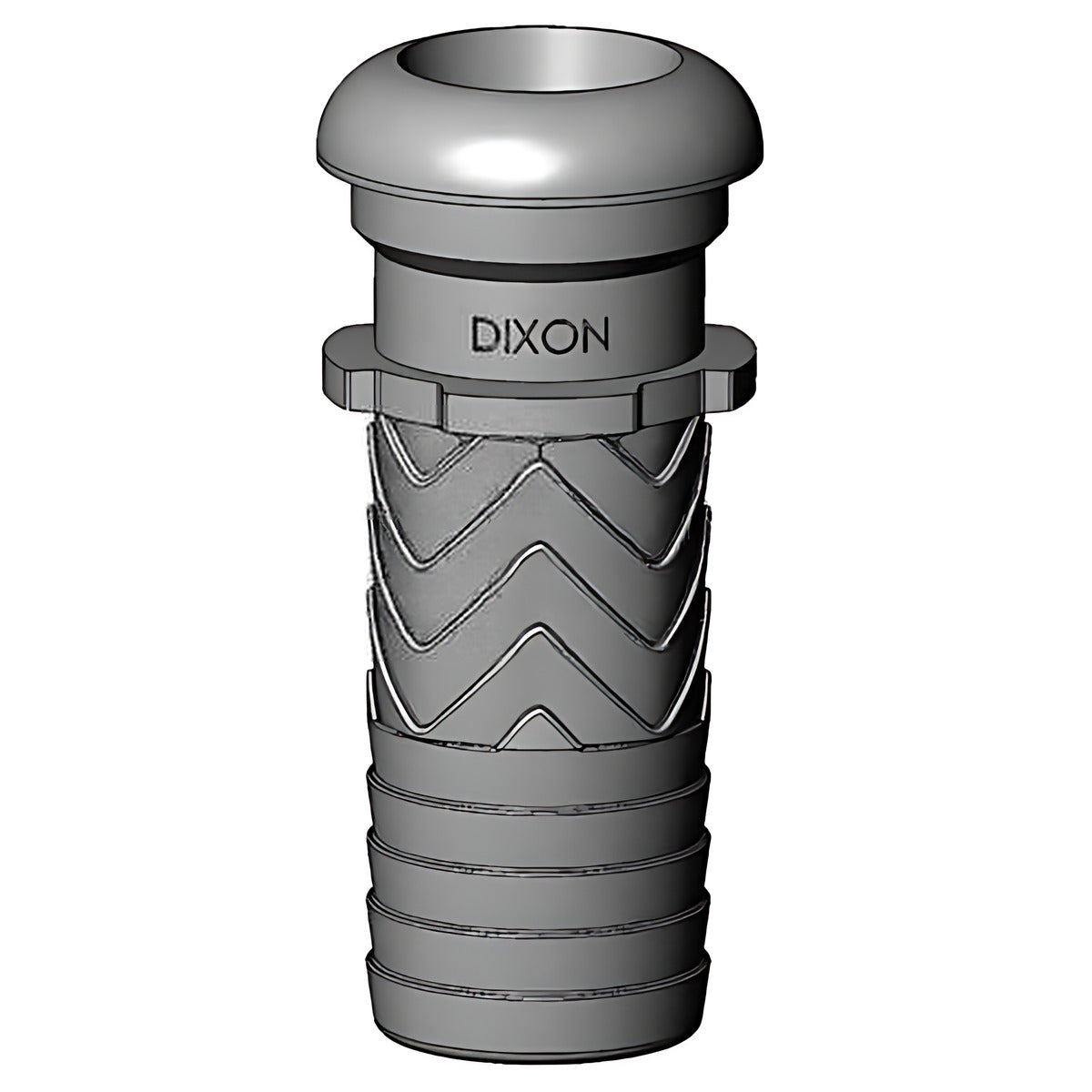

Dixon 08/014/02/009 2" (50mm) Ground Joint Cor-O-Zig Tail
Out of stock
This Dixon Cor-O-Zig tail is a hose tail for the Minsup 50mm (2") ground joint, sold as Cor-O-Zig Tail. Like the plain hose tail, it is assembled onto a hose with a suitable clamp. The Cor-O-Zig tail is designed to be used with Boss clamps.
The range is SG iron (ISO 1083-400-250-15) with a zinc plated finish (AS1789).
Where this product is used
- Hose end of a 50mm (2") ground joint where Boss clamps are used on the hose
- Making a hose assembly that connects to a 50mm (2") ground joint spud fixed to plant
Features
- Cor-O-Zig tail for the Minsup 50mm (2") ground joint
- Designed to be used with Boss clamps
- Material: SG iron (ISO 1083-400-250-15), zinc plated (AS1789)
- Part type: Cor-O-Zig tail
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Part type | Cor-O-Zig tail |
| Size | 50mm (2" nominal bore ID) |
| Material | SG iron to ISO 1083-400-250-15, zinc plated to AS1789 |
| Range thread designations | Wing nut 8 TPI, BSP tapered male to ISO 7-1, BSP parallel female to ISO 7-1 |
| Clamp named by Dixon | Boss clamps |
| Dixon part number | 08/014/02/009 |
Choosing the right option
Choose this tail when you plan to clamp the hose with Boss clamps; if you plan to use the Minsup clamp, the plain hose tail (08/014/02/008) is the one that pairs with it. Measure the hose outside diameter before you choose the clamp. You also need a spud and a wing nut to complete the joint.
Other parts in the Dixon 50mm (2") ground joint range: Dixon 08/014/02/002 2" (50mm) Ground Joint Spud Female BSP, Dixon 08/014/02/004 2" (50mm) Ground Joint Double Spud and Dixon 08/014/02/005 2" (50mm) Ground Joint Spud Male BSP.
