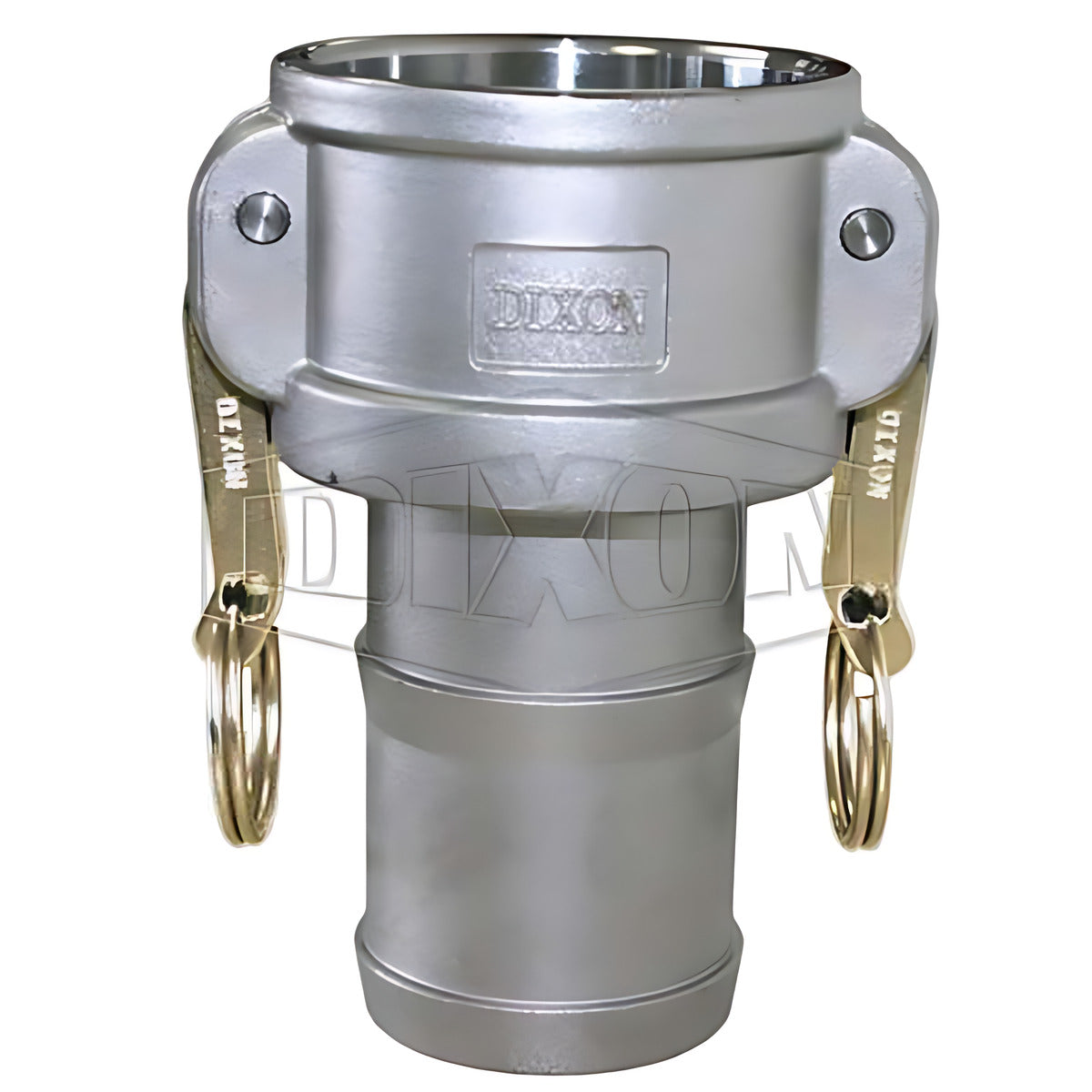

Dixon ALDC050C 1/2" (15 mm) Die Cast Aluminium Camlock Type C Coupler x Hose Tail
Available
This Dixon camlock is a coupler with a hose tail (hose shank) in die cast aluminium. In Dixon's cam and groove system it is the female half of the joint, with the cam levers: an adaptor slides in and the levers are pressed down to lock it (manufacturer-stated). The store lists 11 sizes, from 1/2" (15 mm) to 6" (150 mm).
Dixon lists the body as aluminium conforming to ASTM-A383 in Dixon's catalogue, with brass levers, zinc plated steel pins and pull rings and a nitrile Buna rubber seal (manufacturer-stated).
Dixon rates the sizes in the store at 250 PSI for 20, 25, 32, 40 and 50 mm; 150 PSI for 15 and 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm; 75 PSI for 125 and 150 mm (manufacturer-stated). Dixon bases its pressure ratings on mating Dixon fittings at an ambient temperature of 21 degrees C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions (manufacturer-stated).
Dixon states that camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications (manufacturer-stated). Dixon also states that polypropylene and nyglass fittings should not be mixed with aluminium fittings (manufacturer-stated). Dixon states that couplings made by the die cast process must not be welded (manufacturer-stated).
Where this product is used
- Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes through hose, pipe, tubing and tanks (manufacturer-stated).
- Fitting a coupler to the end of a hose, so the hose can be connected to any adaptor of the same size.
- Hose and pipework where the aluminium body and the nitrile Buna rubber seal suit the media; check both against your media before ordering.
Features
- Type C: coupler x hose tail (manufacturer-stated)
- Body: die cast aluminium (manufacturer-stated)
- Fittings: brass levers, zinc plated steel pins and pull rings and nitrile Buna rubber seal (manufacturer-stated)
- Working pressure: 250 PSI for 20, 25, 32, 40 and 50 mm; 150 PSI for 15 and 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm; 75 PSI for 125 and 150 mm (manufacturer-stated)
- Interchanges with products made to commercial item description A-A-59326D (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Configuration | Type C, coupler x hose tail |
| Body | Aluminium conforming to ASTM-A383 in Dixon's catalogue (manufacturer-stated) |
| Material standard | Catalogue: ASTM-A383; data sheet: ASTM B 26/B 26M grade 356.0-T6 (manufacturer-stated) |
| Connection | Hose tail |
| Cam levers | Brass (manufacturer-stated) |
| Pins | Zinc plated steel (manufacturer-stated) |
| Pull rings | Zinc plated steel (manufacturer-stated) |
| Seal | Nitrile Buna rubber (manufacturer-stated) |
| Working pressure | 250 PSI for 20, 25, 32, 40 and 50 mm; 150 PSI for 15 and 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm; 75 PSI for 125 and 150 mm (manufacturer-stated) |
| Interchange | Commercial item description A-A-59326D (manufacturer-stated) |
| Sizes in store | 1/2" (15 mm), 3/4" (20 mm), 1" (25 mm), 1-1/4" (32 mm), 1-1/2" (40 mm), 2" (50 mm), 2-1/2" (65 mm), 3" (75 mm), 4" (100 mm), 5" (125 mm), 6" (150 mm) |
Key specifications
| Dixon part number | Size | Working pressure | Overall length (mm) | Across flats (mm) |
|---|---|---|---|---|
| ALDC050C | 1/2" (15 mm) | 150 PSI | ||
| ALDC075C | 3/4" (20 mm) | 250 PSI | 85 | 53.4 |
| ALDC100C | 1" (25 mm) | 250 PSI | 98 | 61.5 |
| ALDC125C | 1-1/4" (32 mm) | 250 PSI | 101.7 | 82.7 |
| ALDC150C | 1-1/2" (40 mm) | 250 PSI | 107 | 90.5 |
| ALDC200C | 2" (50 mm) | 250 PSI | 137.7 | 100 |
| ALDC250C | 2-1/2" (65 mm) | 150 PSI | 135.3 | 112.5 |
| ALDC300C | 3" (75 mm) | 125 PSI | ||
| ALDC400C | 4" (100 mm) | 100 PSI | 165 | 165.7 |
| ALDC500C | 5" (125 mm) | 75 PSI | ||
| ALDC600C | 6" (150 mm) | 75 PSI | 223.5 | 237.5 |
Pressure ratings are the figures Dixon prints for this material and size (manufacturer-stated). Lengths and flats come from Dixon's aluminium camlock data sheet, which lists 20 to 150 mm in its own size steps; blank cells mean the sheet does not list that size, and the values are quoted as printed there.
Selecting the right option
Type C has a hose tail, so pick the size to suit your hose and secure the hose with a clamp or band suited to it; the working pressure of the assembly also depends on the hose and the clamp. It connects to a Type A, E or F adaptor of the same size. Do not weld die cast aluminium couplings (manufacturer-stated), and do not mix aluminium with polypropylene or nyglass fittings (manufacturer-stated). Dixon states that no standard exists for 15 mm (1/2") fittings and that this size generally does not interchange with other manufacturers (manufacturer-stated). Dixon states that dust caps and dust plugs must not be used in any pressure application (manufacturer-stated).
Related products
Related Dixon products: Dixon Aluminium Die Cast BSP Cam & Groove Type E Adaptor x Hose Shank, Cam & Groove Type F Adaptor x Male BSP Aluminium Die Cast, Dixon Stainless Steel BSP Cam & Groove Type C Coupler x Hose Shank and Dixon Bronze Sand Cast BSP Cam & Groove Type C Coupler x Hose Shank. Dust caps and plugs for the unused end: Dixon Aluminium Die Cast Standard BSP Cam & Groove Type DC Dust Cap.
