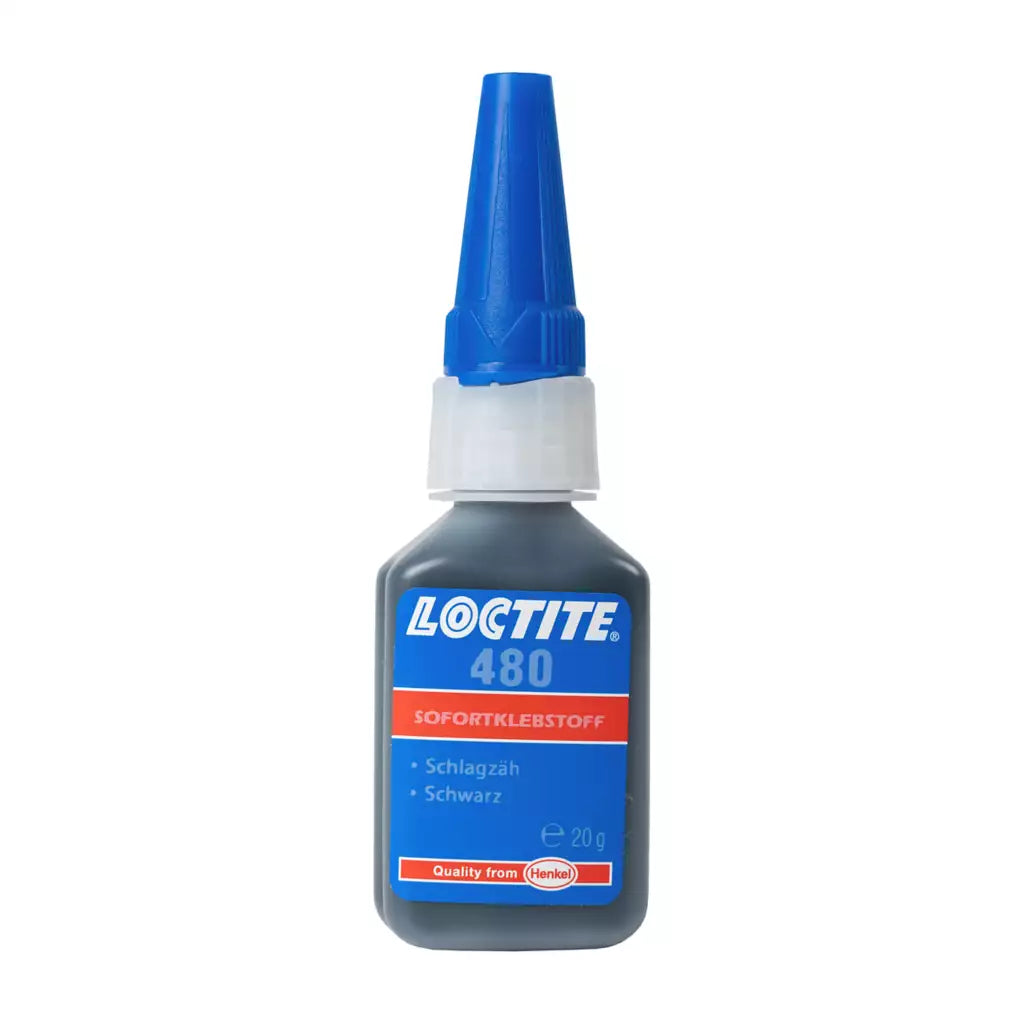

Loctite 480 Black Toughened Instant Adhesive 20g

Loctite 480 is a black, one-part, rubber-toughened ethyl cyanoacrylate. It is a low-viscosity liquid that cures with atmospheric moisture and needs no mixing.

It bonds metals, plastics and rubbers. 22 to 30 N/mm² lap shear on grit-blasted steel after 24 hours at 22 °C.

Where this product is used

• Bonding metals, plastics and rubbers
• Rubbers such as neoprene and nitrile, which fixture in under 20 s
• Plastics including ABS, PVC, polycarbonate and phenolic
• Steel, aluminium and zinc dichromate parts
• Joints where a black adhesive suits the parts

Features

• Black liquid, one part, no mixing
• Rubber toughened ethyl cyanoacrylate
• Low viscosity: 100 to 200 mPa·s at 25 °C
• Fixtures in under 20 s on neoprene and nitrile rubber (22 °C, 50% RH)
• Lap shear of 22 to 30 N/mm² on grit-blasted steel after 24 h at 22 °C
• Steel lap shear stays at 18.0 N/mm² or above after a further 48 h at 120 °C
• Glass transition temperature of 150 °C

Key specifications

Choosing the right option

For another black toughened grade see Loctite 438 Black Toughened Instant Adhesive 25ml; for a clear toughened grade see Loctite 435 Toughened Instant Adhesive 25ml. Compare the fixture times for your materials.

See also: Loctite 438 Black Toughened Instant Adhesive 25ml, Loctite 435 Toughened Instant Adhesive 25ml, Loctite 454 Instant Adhesive Gel 20g, Loctite 460 Low Odour Low Bloom Instant Adhesive 25ml.

Using it

It performs well at a thin bond gap (0.05mm). Larger gaps slow the cure, and an activator can speed the cure but may reduce final strength; see Loctite 7452 Cyanoacrylate Accelerator 20g.

Curing continues for at least 24 hours before full chemical and solvent resistance develops.

Do not return used product to the container.

Storage and handling

Store unopened and dry at 2 °C to 8 °C. Storage outside this range can adversely affect product properties.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidising materials. Read the safety data sheet before use.
