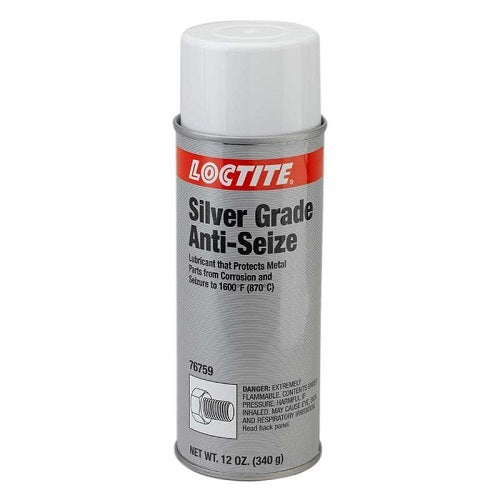

Loctite LB8151 Silver Grade Anti-Seize Aerosol 340g
Available
Loctite LB 8151 Silver Grade is an anti-seize spray for threaded connections exposed to high temperatures. It is a grey formulation of mineral oil, lithium soap, aluminium, graphite and extreme pressure (EP) additives, supplied in a propane/butane aerosol.
Typical applications include the exhausts of combustion engines, fittings, and oil and gas burners, with a typical operating range of -30 °C to +900 °C. There is nothing to cure.
Where this product is used
- Exhausts of combustion engines
- Fittings on oil and gas burners
- Threaded connections exposed to high temperatures
- Threads that need a uniform sprayed film from about 15 to 20cm
Features
- Grey anti-seize in an aerosol, propane/butane propellant
- Mineral oil, lithium soap, aluminium, graphite and EP additives
- Typical operating range -30 °C to +900 °C
- Four-ball weld load 4,400 N (ASTM D2596)
- NLGI Class 1 (ISO 6743-99)
- Copper corrosion rating 1b after 3 h at 100 °C (ISO 2160)
- Nothing to cure
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loctite |
| Technology | Anti-seize spray for threaded connections exposed to high temperatures |
| Chemical type | Mineral oil, lithium soap, aluminium, graphite and EP additives |
| Appearance | Grey; oily odour |
| Propellant | Propane/butane |
| Density (ISO 2811-1, 25 °C) | 0.97g/ml |
| Consistency | NLGI Class 1 (ISO 6743-99) |
| Worked penetration (ISO 2137, 25 °C, 60 strokes) | 310 to 340 (1/10mm) |
| Four-ball weld load (ASTM D2596) | 4,400 N |
| Wear scar (1 h, 400 N) | 0.95mm |
| Copper corrosion (ISO 2160, 3 h at 100 °C) | 1b |
| Operating range (typical) | -30 °C to +900 °C |
| Can pressure and delivery rate | 3 bar at 20 °C; 1.5g/s |
| Storage | Highly flammable; unopened, dry, away from oxidisers and combustibles; optimum 8 °C to 21 °C |
Choosing the right option
Silver Grade is also supplied as a paste: see Loctite LB 8150 Silver Grade Anti-Seize. Prepare the parts first with a Loctite cleaner; see Loctite SF 7063 General Purpose Cleaner - 400ml Aerosol.
See also: Loctite 51007 C5-A Copper Anti-Seize 454g, Loctite 51606 Heavy Duty Anti-Seize 510g, Loctite 771 Nickel Anti-Seize Lubricant 500g, Loctite LB 8014 Food Grade Anti-Seize 227g.
Using it
Clean the parts first. Use Loctite 7063 or 7070 cleaner to remove oxides and lubricant residue.
Shake the can thoroughly and spray from about 15 to 20cm to give a uniform film. There is nothing to cure.
It is typically used in applications with an operating range of -30 °C to +900 °C.
It is not recommended for pure oxygen or oxygen-rich systems.
Storage and handling
Highly flammable: store in line with regulations. Keep the container unopened and dry, away from oxidisers and combustibles, optimally between 8 °C and 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.
Limits and safety
Not recommended for pure oxygen or oxygen-rich systems, or as a lubricant for chlorine or other strong oxidisers. The technical data are intended as reference only. Read the safety data sheet before use.
