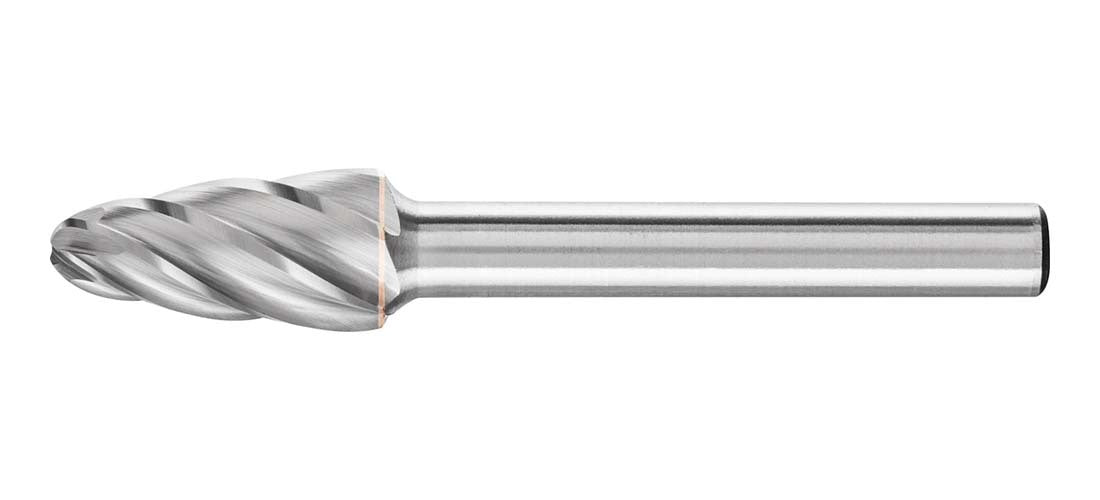

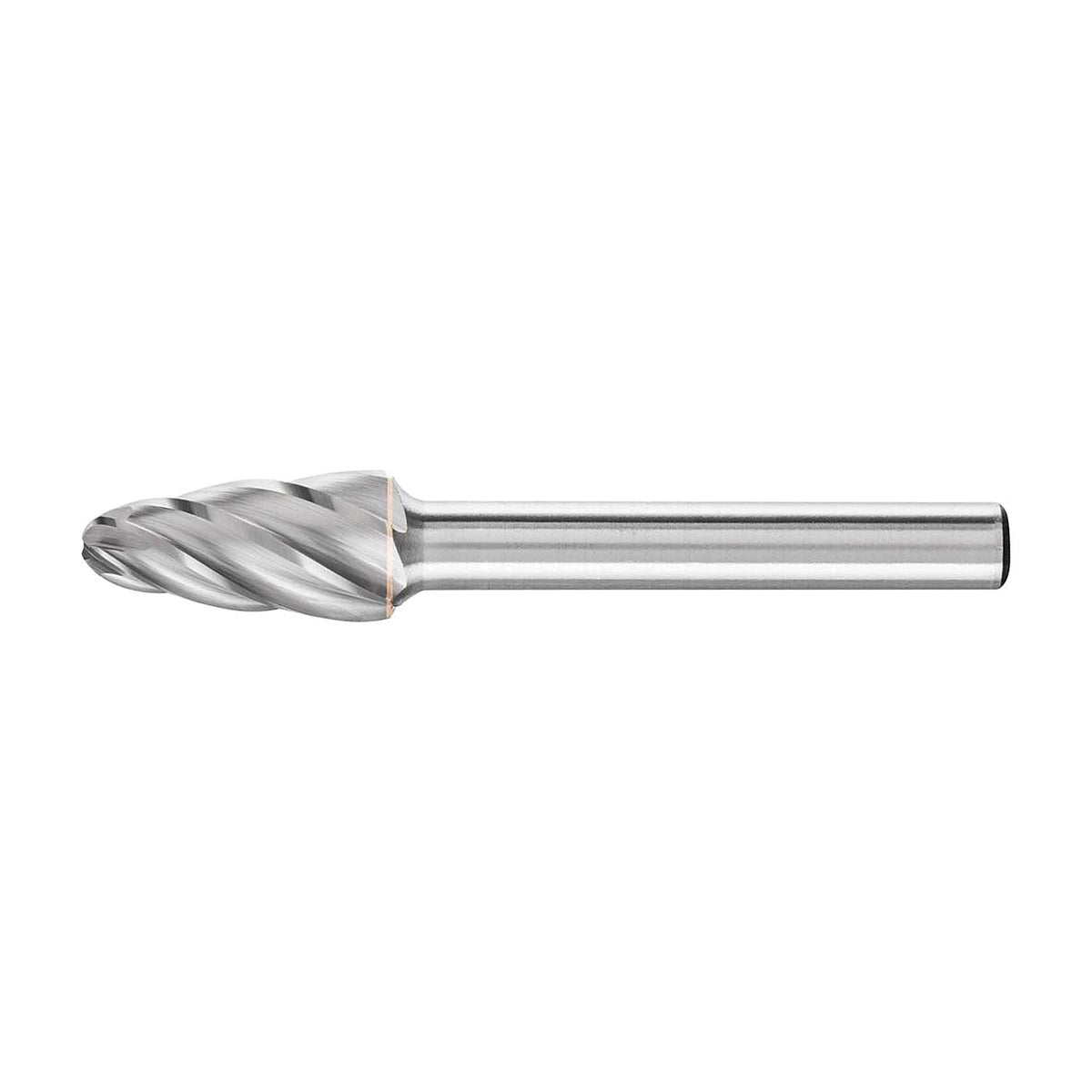

Pferd Tree Shape Burr RBF, ALU, 10 x 20 mm, 6 mm Shank

This Pferd tree shape burr with radius end (RBF) is a tungsten carbide burr in ALU cut on a 6mm shank. It has a head size of 10 x 20mm.

The ALU cut gives a high stock removal rate on aluminium and aluminium alloys, non-ferrous metals and plastics, with smooth milling. The RBF is a tree-shaped burr with radius end to DIN 8032 for high stock removal, long tool life and smooth operation when machining aluminium. Key features: large chips and reduced material adhesion, smooth milling on aluminium and aluminium alloys.

Where this product is used

• Machining aluminium and aluminium alloys
• Non-ferrous metals and plastics

Features

• Tungsten carbide, tree shape with radius end (RBF)
• ALU: high stock removal rate on aluminium, with smooth milling
• 6mm shank
• Head size 10 x 20mm, overall length 60mm
• Large chips and reduced material adhesion
• Smooth milling on aluminium and aluminium alloys

Key specifications

Choosing the right option

Check the head size and shank against the job and your tool. The cutting speed is 600 to 1,100 m/min for aluminium alloys, and the rotational speed follows from the burr diameter. Do not exceed the maximum permitted rotational speed, observe the recommended rotational speed (especially with long shanks), wear eye and hearing protection and a dust mask, and do not use a damaged burr or use the burr for cutting.

Same shape and cut in other sizes or shanks: Pferd Tree Shape Burr RBF, ALU, 6.35 x 15.9 to 12.7 x 25.4mm, 6.35mm Shank, Pferd Tree Shape Burr RBF, ALU, 6 x 18 and 12 x 25mm, 6mm Shank.

Same shape with other cuts: Pferd Tree Shape Burr RBF, TOUGH, 10 x 20 and 12 x 25mm, 6mm Shank, Pferd Tree Shape Burr RBF, INOX, 6 x 18 and 12 x 25mm, 6mm Shank.

Same cut in other shapes: Pferd Conical Radius End Burr KEL, ALU, 12 x 30mm, 6mm Shank.
