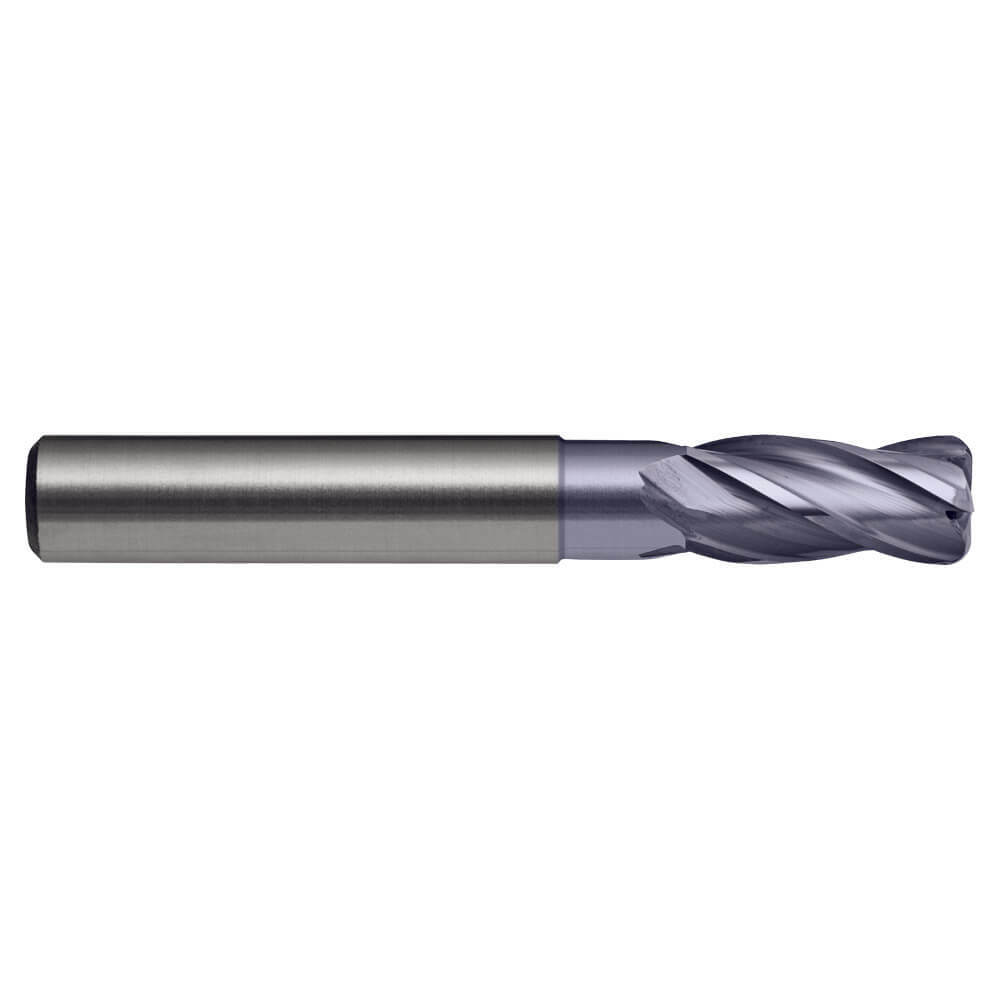

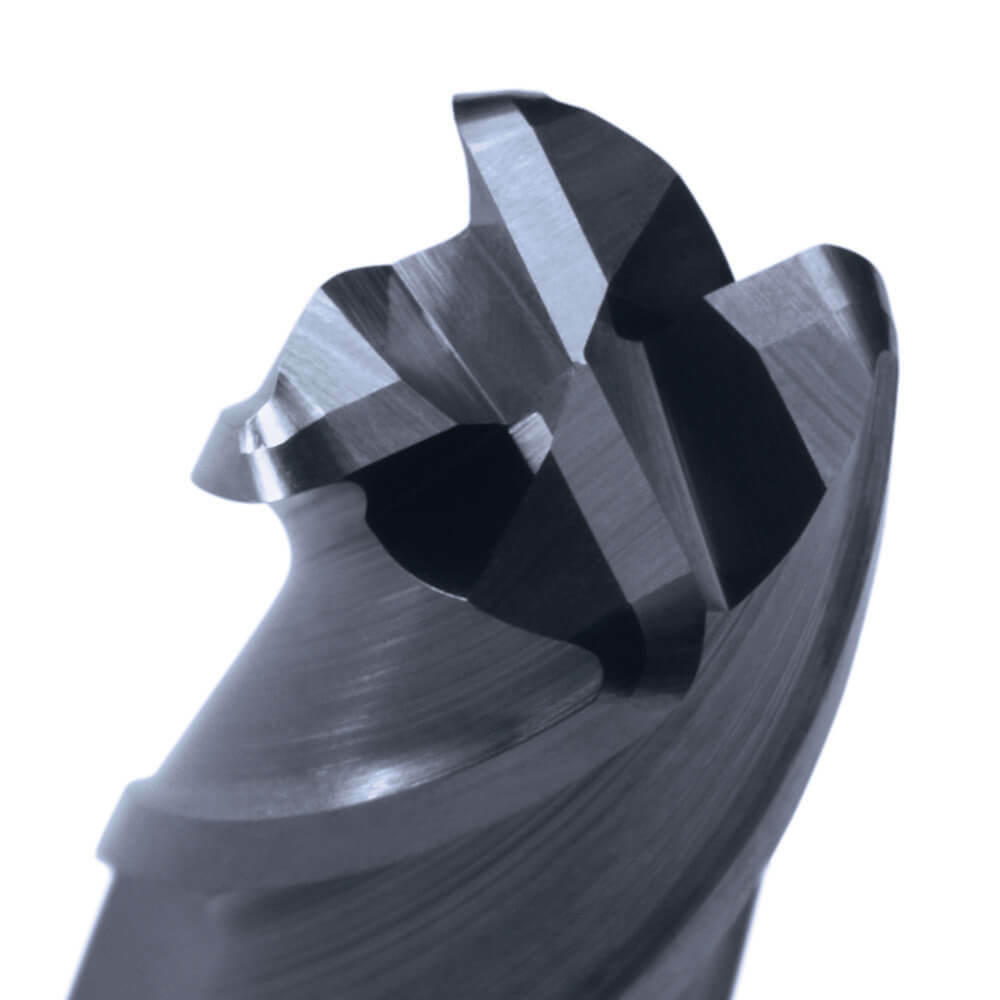

Sutton E559 Metric 4 Flute Corner radius Endmill VHM Ultra AlCrN

Description

• For precision finishing applications

Features

• Ideally suited to materials up to 1300 N/mm2
• AlCrN for longer tool life

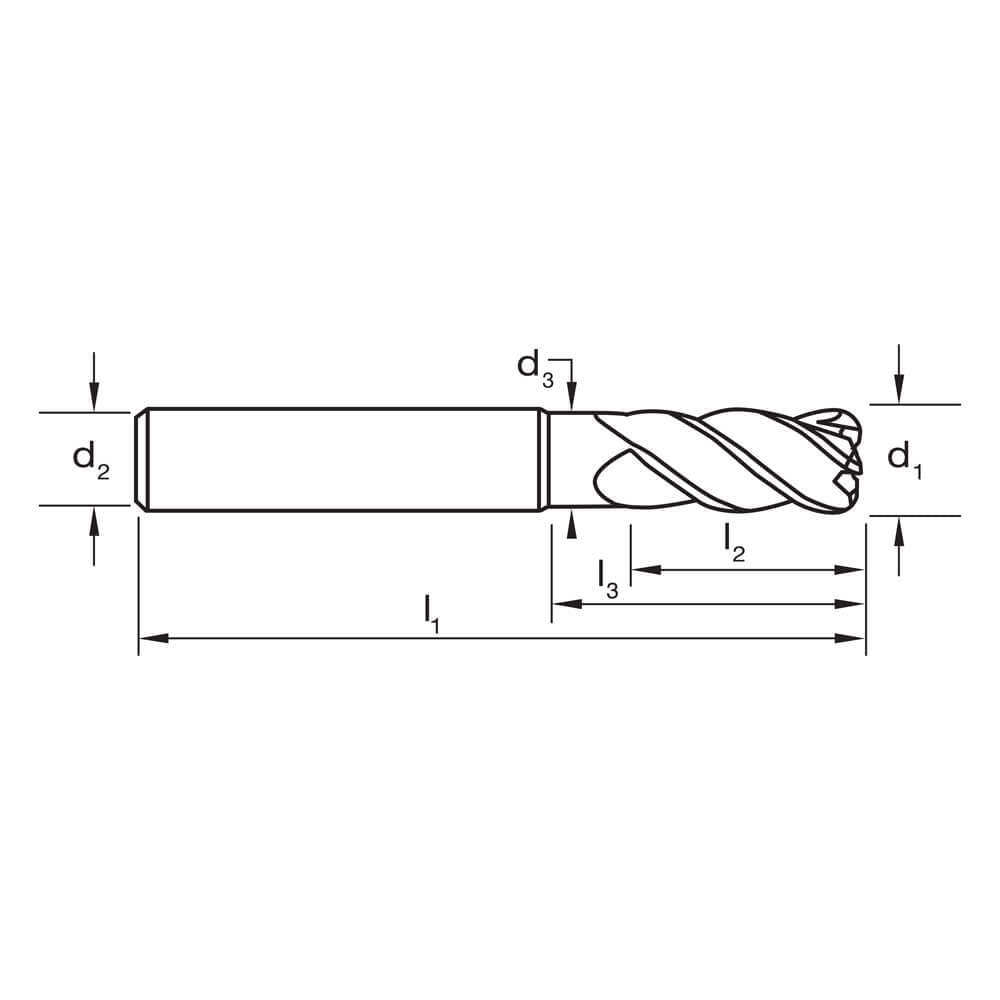

Specifications

• Designation: UNI
• Material: VHM-ULTRA
• Finish: AlCrN
• Shank Form: HA
• Helix Angle: R35/38
• Point Tolerance: h10
• Shank Tolerance: h6
• Point Form: Corner Radius
• Type: N (finishing)
• Rake Angle: 6
• Standard: DIN6527L

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
• Optimal for Steel - High alloy, cast & tool- 200 HB
• Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
• Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
• Optimal for Cast Iron, Malleable Ferritic- 130 HB
• Optimal for Cast Iron, Malleable Pearlitic- 230 HB
