Sutton E5600303 3 x 57mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600305 3 x 57mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600403 4 x 57mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600405 4 x 57mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600410 4 x 57mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5600503 5 x 57mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600505 5 x 57mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600510 5 x 57mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5600603 6 x 57mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600605 6 x 57mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600610 6 x 57mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5600803 8 x 63mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600805 8 x 63mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600810 8 x 63mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5600815 8 x 63mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5600820 8 x 63mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN
Sutton E5601003 10 x 72mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5601005 10 x 72mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5601010 10 x 72mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5601015 10 x 72mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5601020 10 x 72mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN
Sutton E5601203 12 x 83mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5601205 12 x 83mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5601210 12 x 83mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5601215 12 x 83mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5601220 12 x 83mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN

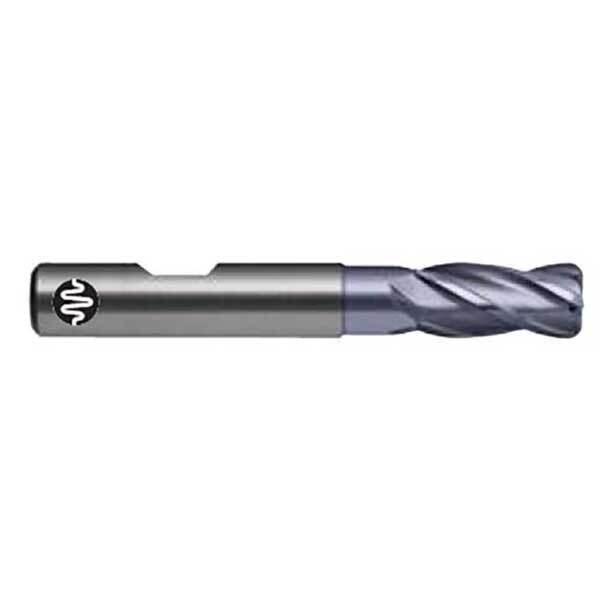

Sutton E5601230 12 x 83mm 4 Flute Ball Nose Endmill 3° Carbide AlCrN
Sutton E5601605 16 x 92mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5601610 16 x 92mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5601615 16 x 92mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5601620 16 x 92mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN
Sutton E5601630 16 x 92mm 4 Flute Ball Nose Endmill 3° Carbide AlCrN
Sutton E5602005 20 x 104mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5602010 20 x 104mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5602015 20 x 104mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5602020 20 x 104mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN
Sutton E5602030 20 x 104mm 4 Flute Ball Nose Endmill 3° Carbide AlCrN
Sutton E560 4 Flute Ball Nose Endmill Carbide1
Sutton E560 4 Flute Ball Nose Endmill Carbide2
Sutton E560 4 Flute Ball Nose Endmill Carbide3
Sutton E5600303 3 x 57mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600305 3 x 57mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600403 4 x 57mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600405 4 x 57mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600410 4 x 57mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5600503 5 x 57mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600505 5 x 57mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600510 5 x 57mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5600603 6 x 57mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600605 6 x 57mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600610 6 x 57mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5600803 8 x 63mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5600805 8 x 63mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5600810 8 x 63mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5600815 8 x 63mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5600820 8 x 63mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN
Sutton E5601003 10 x 72mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5601005 10 x 72mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5601010 10 x 72mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5601015 10 x 72mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5601020 10 x 72mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN
Sutton E5601203 12 x 83mm 4 Flute Ball Nose Endmill 0.3° Carbide AlCrN
Sutton E5601205 12 x 83mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5601210 12 x 83mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5601215 12 x 83mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5601220 12 x 83mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN
Sutton E5601230 12 x 83mm 4 Flute Ball Nose Endmill 3° Carbide AlCrN
Sutton E5601605 16 x 92mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5601610 16 x 92mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5601615 16 x 92mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5601620 16 x 92mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN
Sutton E5601630 16 x 92mm 4 Flute Ball Nose Endmill 3° Carbide AlCrN
Sutton E5602005 20 x 104mm 4 Flute Ball Nose Endmill 0.5° Carbide AlCrN
Sutton E5602010 20 x 104mm 4 Flute Ball Nose Endmill 1° Carbide AlCrN
Sutton E5602015 20 x 104mm 4 Flute Ball Nose Endmill 1.5° Carbide AlCrN
Sutton E5602020 20 x 104mm 4 Flute Ball Nose Endmill 2° Carbide AlCrN
Sutton E5602030 20 x 104mm 4 Flute Ball Nose Endmill 3° Carbide AlCrN

Sutton E560 4 Flute Ball Nose Endmill Carbide

Sutton E560 4 Flute Ball Nose Endmill Carbide

SKU: A0129430

Type: Endmill Harmony

$78.10
$78.10
Inc. GST
Buy It Now

Available

The Sutton E560 4 Flute Ball Nose Endmill Carbide by Sutton Tools is an Endmill Harmony constructed from VHM-ULTRA. It provides suitability for materials of up to 1300 N/mm2 and is suitable for precision finishing applications.

Resources

4 Flute Endmill R35/38 UNI - Corner Radius - Harmony

  • For precision finishing applications

Features

  • For precision finishing applications.
  • Ideally suited to materials up to 1300 N/mm2.
  • AlCrN for longer tool life

Specifications

  • Designation: UNI
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HB
  • Helix Angle: R30
  • Shank Tolerance: h6

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Malleable Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable Pearlitic- 230 HB
  • Designation: UNI
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HB
  • Helix Angle: R30
  • Shank Tolerance: h6
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Malleable Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable Pearlitic- 230 HB
