Sutton E5680610 6 x 6mm 4 Flute Corner Radius Endmill R1 VHM Ultra AlCrN

Sutton E5680820 8 x 8mm 4 Flute Corner Radius Endmill R2 VHM Ultra AlCrN

Sutton E5681020 10 x 10mm 4 Flute Corner Radius Endmill VHM Ultra AlCrN

Sutton E5681230 12 x 12mm 4 Flute Corner Radius Endmill VHM Ultra AlCrN

Sutton E5681430 14 x 14mm 4 Flute Corner Radius Endmill VHM Ultra AlCrN

Sutton E5681640 16 x 16mm 4 Flute Corner Radius Endmill VHM Ultra AlCrN

Sutton E5682040 20 x 20mm 4 Flute Corner Radius Endmill VHM Ultra AlCrN

Description +

Descriptions

Ideal design for hard machining
4 Flute Endmill R50-VH for high performance

Specifications +

Specifications

Designation: VH
Material: VHM-ULTRA
Finish: Aldura
Shank Form: HA
Helix Angle: R50
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Corner Radius
Type: N (finishing)
Rake Angle: -14
Standard: DIN6527L

Application +

Applications

Optimal for Hardened Steel ‚Äì 55 HRC
Optimal for Hardened Steel ‚Äì 58 HRC
Optimal for Hardened Steel ‚Äì 62 HRC
Optimal for Cast Iron ‚Äì 55 HRC

Features & Benefits +

Features

VHM-ULTRA grade of carbide for high performance
Suitable for materials up to 63 HRC
Dual stepped core for optimal stability
Aldura for longer tool life

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

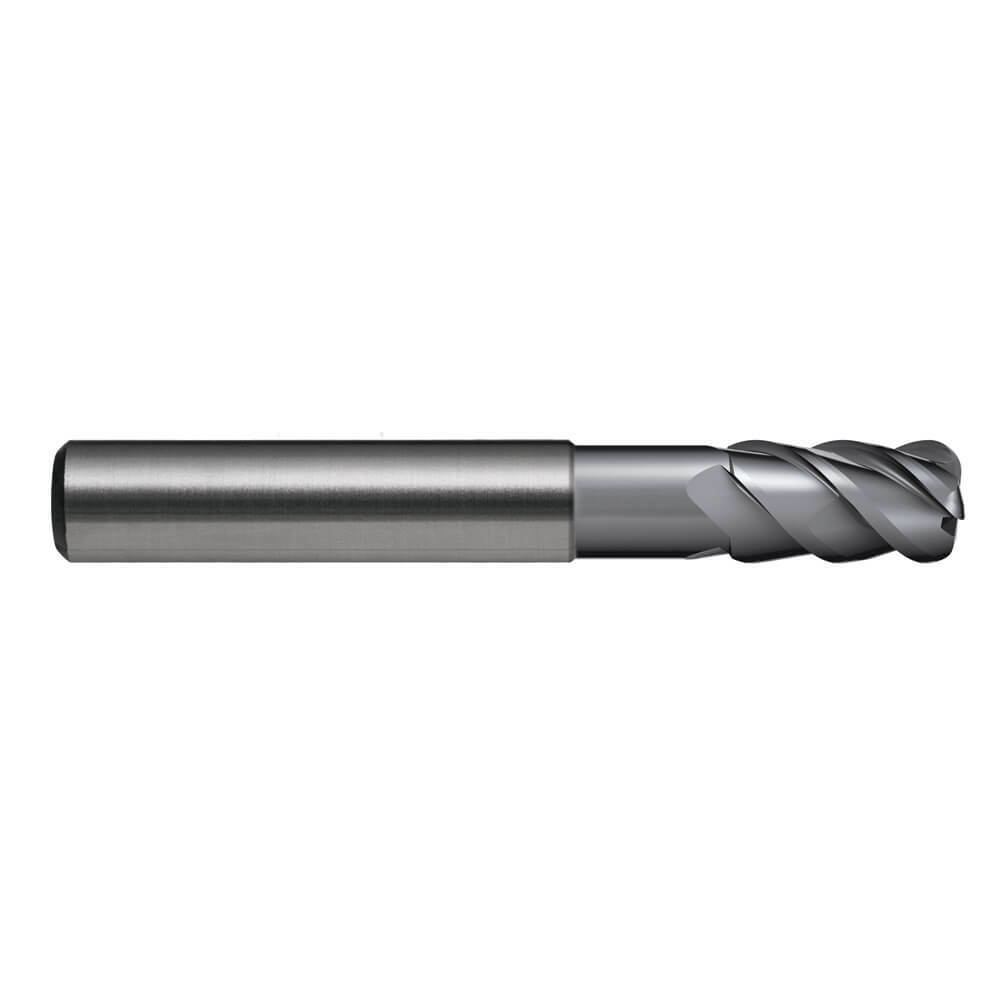

Sutton E568 Metric 4 Flute Corner Radius Endmill - VHM Ultra AlCrN

SKU: A0009925

$66.02

Inc. GST

Buy It Now

Available

The Sutton E568 Endmill is designed for hard machining with a VHM-ULTRA grade of carbide. It has a 10mm diameter, 2.0 radius, and is suitable for materials up to 63 HRC. The dual stepped core and Aldura finish enhance stability and longevity.
