Sutton E565 8mm Corner Radius Endmill 4 Flute R0.3 - Carbide VHM Ultra - AlCrN - Regular
Available

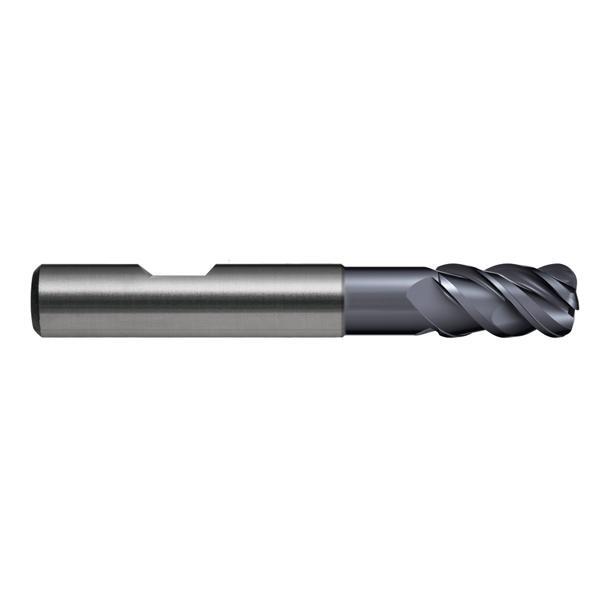

The Sutton E565 is a 4 flute corner radius endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the regular length series. This listing covers 37 metric sizes from 6 mm to 20 mm. Corner radii in this listing: 0.3, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0 mm.
The cutting edge has a 50° helix and the designation is NH. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and h10 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Pocket milling in MQL and HSC applications.
- Materials up to 48 HRC.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 4 flutes, 50° helix.
- Dual stepped core for optimal stability.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|---|---|
| E565 0603 | 6 | 57 | 13 | 21 | 6 | 5.5 | 4 | 0.3 |
| E565 0605 | 6 | 57 | 13 | 21 | 6 | 5.5 | 4 | 0.5 |
| E565 0610 | 6 | 57 | 13 | 21 | 6 | 5.5 | 4 | 1.0 |
| E565 0803 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 0.3 |
| E565 0805 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 0.5 |
| E565 0810 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 1.0 |
| E565 0815 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 1.5 |
| E565 0820 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 2.0 |
| E565 1003 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 0.3 |
| E565 1005 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 0.5 |
| E565 1010 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 1.0 |
| E565 1015 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 1.5 |
| E565 1020 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 2.0 |
| E565 1203 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 0.3 |
| E565 1205 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 0.5 |
| E565 1210 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 1.0 |
| E565 1215 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 1.5 |
| E565 1220 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 2.0 |
| E565 1230 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 3.0 |
| E565 1403 | 14 | 83 | 26 | 38 | 14 | 13 | 4 | 0.3 |
| E565 1405 | 14 | 83 | 26 | 38 | 14 | 13 | 4 | 0.5 |
| E565 1410 | 14 | 83 | 26 | 38 | 14 | 13 | 4 | 1.0 |
| E565 1415 | 14 | 83 | 26 | 38 | 14 | 13 | 4 | 1.5 |
| E565 1420 | 14 | 83 | 26 | 38 | 14 | 13 | 4 | 2.0 |
| E565 1430 | 14 | 83 | 26 | 38 | 14 | 13 | 4 | 3.0 |
| E565 1605 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 0.5 |
| E565 1610 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 1.0 |
| E565 1615 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 1.5 |
| E565 1620 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 2.0 |
| E565 1630 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 3.0 |
| E565 1640 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 4.0 |
| E565 2005 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 0.5 |
| E565 2010 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 1.0 |
| E565 2015 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 1.5 |
| E565 2020 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 2.0 |
| E565 2030 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 3.0 |
| E565 2040 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 4.0 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E565 |
| Type | Corner Radius Endmill, 4 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R50 |
| Designation | NH |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 37 sizes, 6 to 20 mm |
