Sutton E569 4 Flute Corner Radius Endmill Carbide - AIMS Industrial Supplies

Specifications +

Specifications:

Designation: VH
Material: VHM-ULTRA
Finish: Aldura
Shank Form: HB
Helix Angle: R50
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Corner Radius
Type: N (finishing)
Standard: DIN6527L
Rake Angle: -14

Application +

Applications:

Optimal for Hardened steel-55HRC
Optimal for Hardened steel-58HRC
Optimal for Hardened steel-62HRC
Optimal for Cast Iron-55HRC

Features & Benefits +

Features:

Endmill, 4 Flute, R50-VH, Cnr Rad, Harmony DUO for high performance.
Dual stepped core for optimal stability.
Ideal design for hard machining.
Suitable for materials up to 63 HRC.
Aldura for longer tool life.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

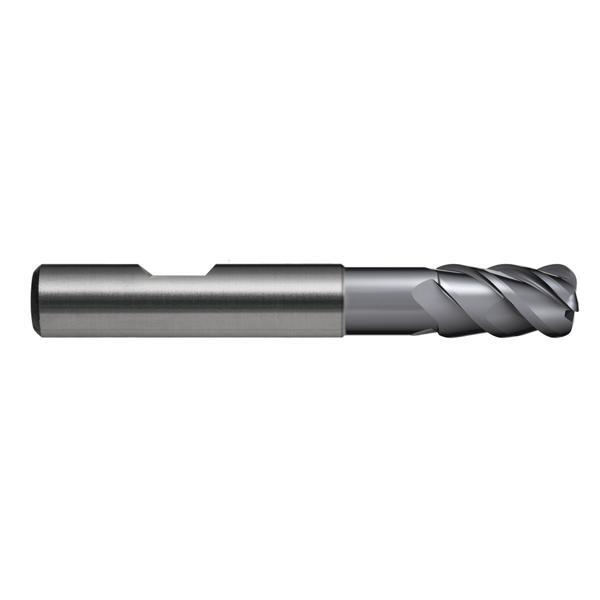

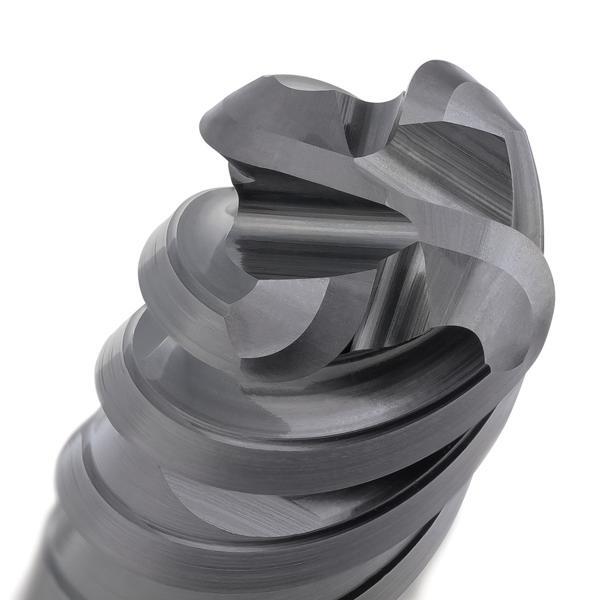

Sutton E569 4 Flute Corner Radius Endmill Carbide

SKU: A0129373

Type: Machining Tool

$55.10

$55.10 ~~$78.72~~

Inc. GST

⚙Carbide Construction

⚙Sutton Flute Corner Radius

📐Multiple Sizes Available

🔩Precision Milling Operations

🏗Metalworking & Manufacturing

☑Australian Made Quality

Out of stock

Product Highlights −

4 Flute Endmills - R50 VH - Corner Radius - Harmony DUO

VHM-ULTRA grade of carbide for high performance.
