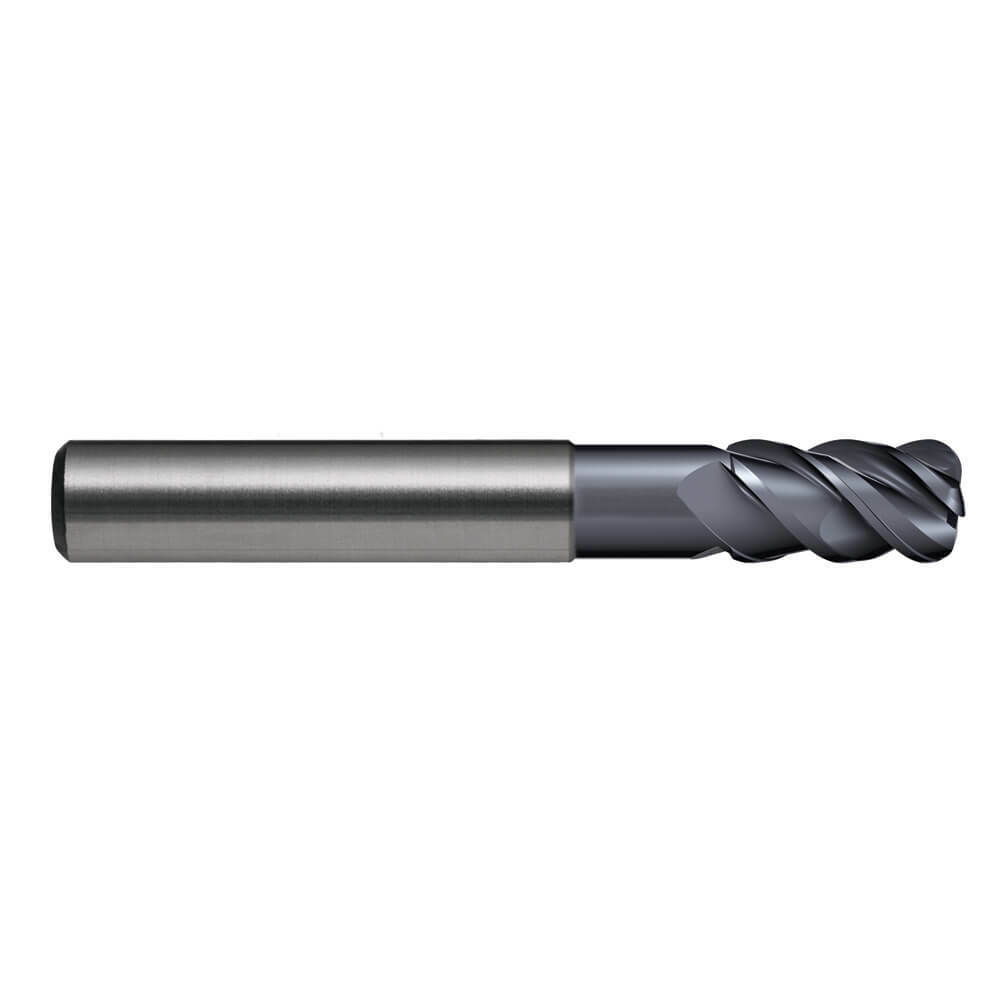

Sutton E564 Metric 4 Flute Corner Radius Endmill VHM Ultra AlCrN

Sutton E564 Metric 4 Flute Corner Radius Endmill VHM Ultra AlCrN

SKU: A0009881

$66.02
$66.02
Inc. GST
Buy It Now

Available

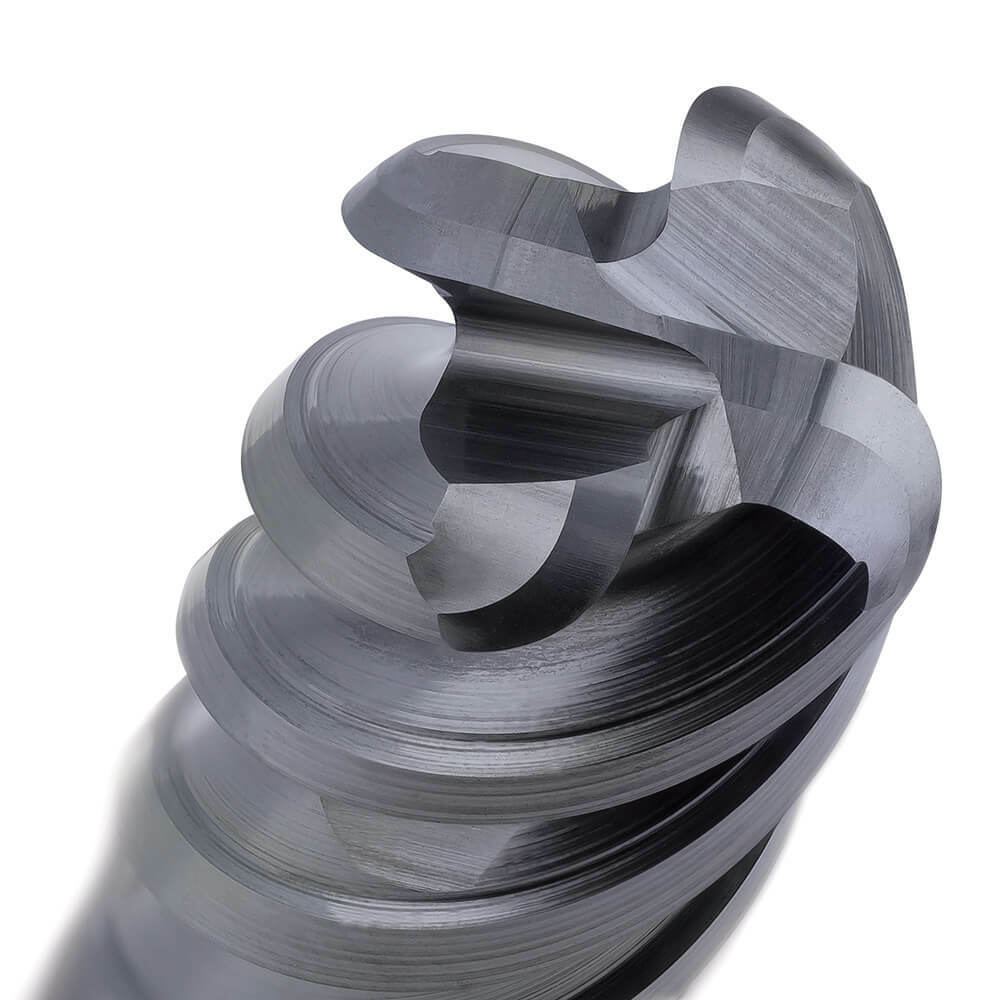

The Sutton E564 Endmill VHM Ultra AlCrN is a high-performance tool, ideal for pocket milling in MQL & HSC. It boasts a VHM-ULTRA grade of carbide and an AlCrN finish, ensuring durability and stability.

Resources

Descriptions

  • Ideal design for pocket milling in MQL & HSC
  • 4 Flute Endmill R50-NH for high performance

Features

  • VHM-ULTRA grade of carbide for high performance
  • Suitable for materials up to 48 HRC
  • Dual stepped core for optimal stability
  • AlCrN for longer tool life

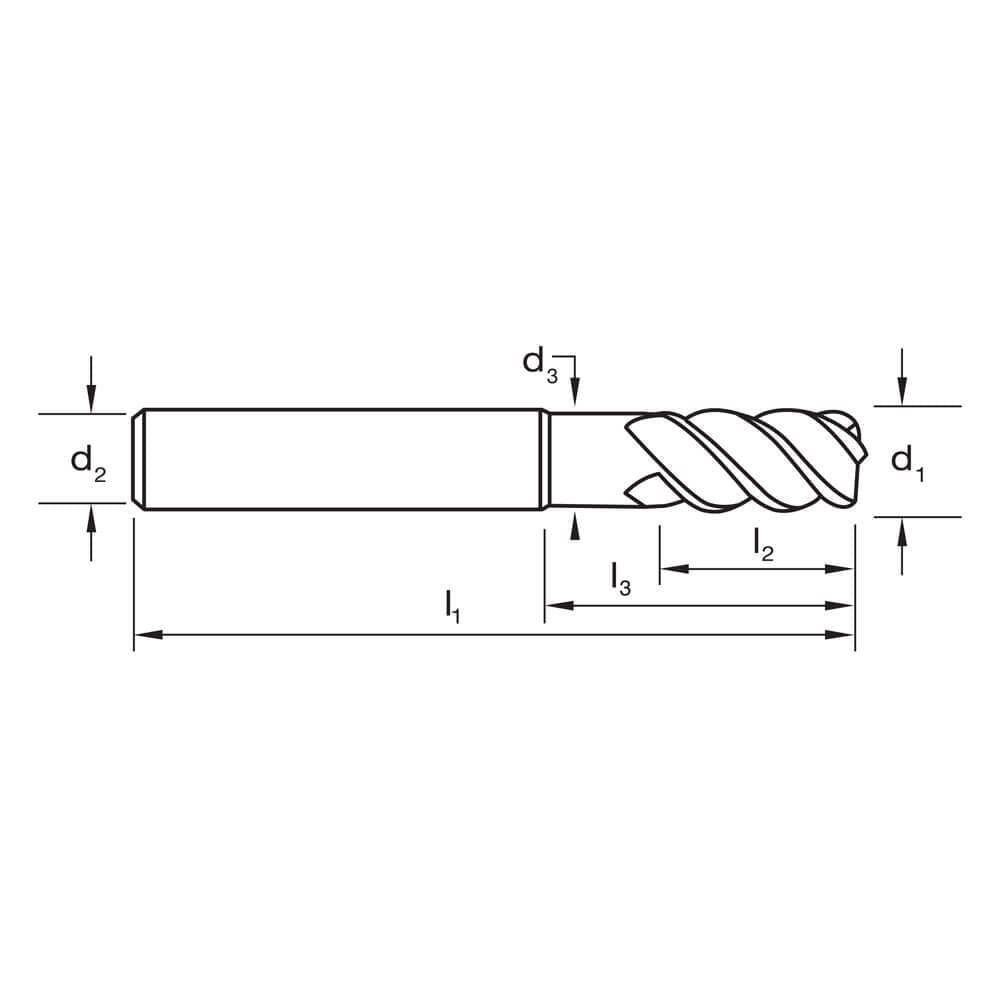

Specifications

  • Designation: NH
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HA
  • Helix Angle: R50
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Corner Radius
  • Type: N (finishing)
  • Rake Angle: 14
  • Standard: DIN6527L

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Steel - Corrosion resistant & cast Martensitic 240 HB
  • Optimal for Stainless Steel Duplex- 250 HB
  • Optimal for Stainless Steel - Precipitation Hardening- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Pearlitic (GGG) Ferritic- 250 HB
  • Optimal for High temperature alloys - Fe based 280 HB
  • Optimal for High temperature alloys - Ni / Co based 350 HB
  • Optimal for High temperature alloys - Ni / Co based 320 HB
  • Optimal for Titanium & Titanium alloys - Alpha alloys
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
  • Optimal for Titanium & Titanium alloys - Beta alloys
  • Optimal for Cast Iron Chilled 400 HB
  • Designation: NH
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HA
  • Helix Angle: R50
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Corner Radius
  • Type: N (finishing)
  • Rake Angle: 14
  • Standard: DIN6527L
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Steel - Corrosion resistant & cast Martensitic 240 HB
  • Optimal for Stainless Steel Duplex- 250 HB
  • Optimal for Stainless Steel - Precipitation Hardening- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Pearlitic (GGG) Ferritic- 250 HB
  • Optimal for High temperature alloys - Fe based 280 HB
  • Optimal for High temperature alloys - Ni / Co based 350 HB
  • Optimal for High temperature alloys - Ni / Co based 320 HB
  • Optimal for Titanium & Titanium alloys - Alpha alloys
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
  • Optimal for Titanium & Titanium alloys - Beta alloys
  • Optimal for Cast Iron Chilled 400 HB
