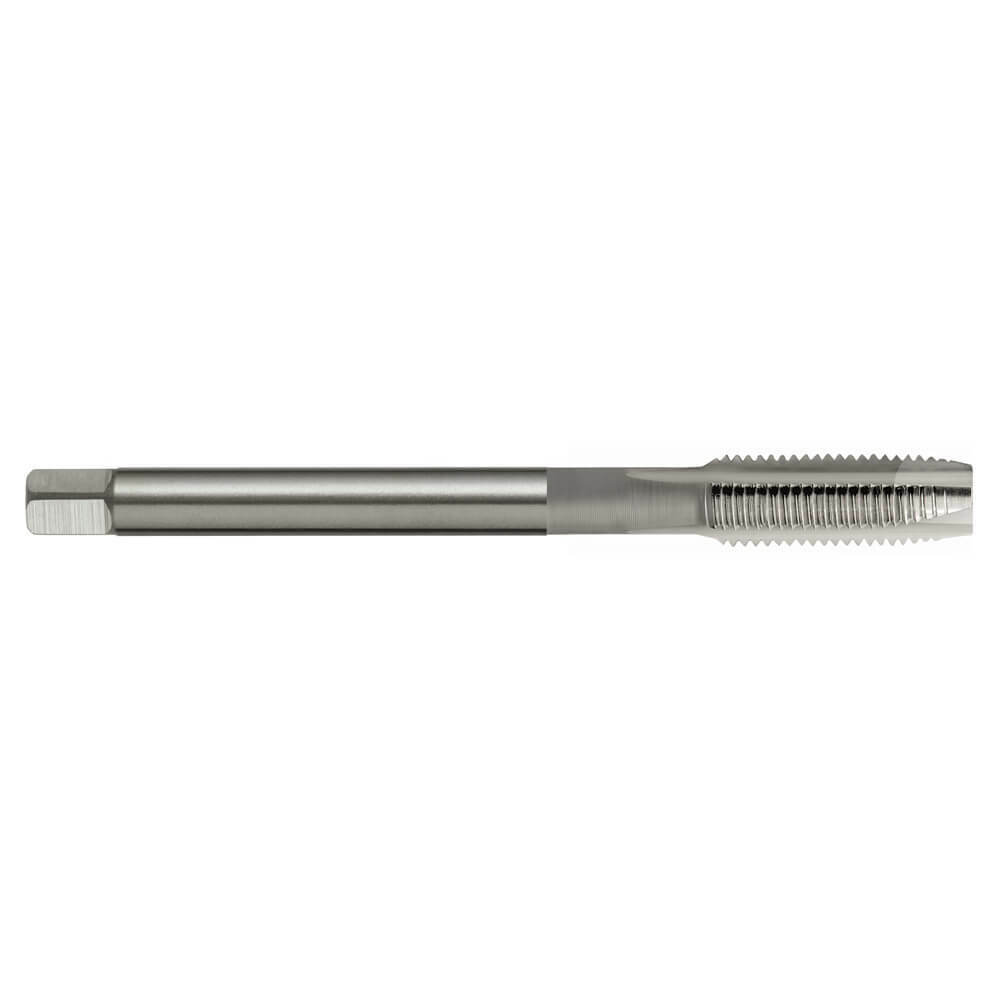

Sutton T155 M6 x 0.75 Spiral Point Tap - HSSE - Bright - DIN 374
Available
The Sutton T155 is a spiral point (gun) tap (N designation) for metric fine (MF) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 11 sizes from M6 x 0.75 to M14 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is ISO 3 / 6G. The tap is built to DIN 374: reduced shank with square drive.
Where this product is used
- General purpose use, materials up to approx. 1000 N/mm2.
- Through holes.
- Suitable for machine operations.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- 3 flutes.
- Form B chamfer, 4.5 x P.
- Thread tolerance ISO 3 / 6G.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- DIN 374 construction, reduced shank with square drive.
Sizes

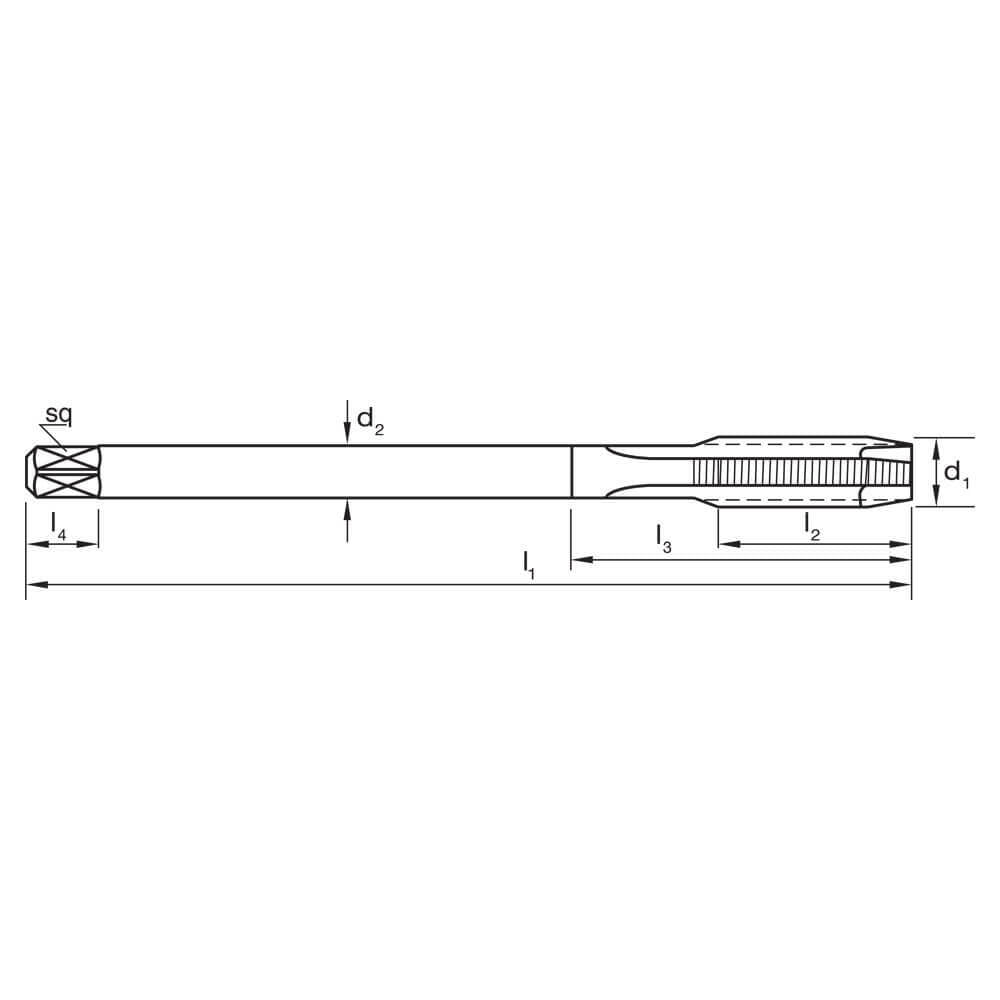

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T155 0604 | M6 x 0.75 | 0.75 | 5.3 | 80 | 14 | 4.5 | 3.4 | 6 | 3 |
| T155 0803 | M8 x 0.5 | 0.5 | 7.5 | 80 | 18 | 6 | 4.9 | 8 | 3 |
| T155 0804 | M8 x 0.75 | 0.75 | 7.3 | 80 | 18 | 6 | 4.9 | 8 | 3 |
| T155 0805 | M8 x 1 | 1 | 7 | 90 | 22 | 6 | 4.9 | 8 | 3 |
| T155 1005 | M10 x 1 | 1 | 9 | 90 | 20 | 7 | 5.5 | 8 | 3 |
| T155 1006 | M10 x 1.25 | 1.25 | 8.8 | 100 | 24 | 7 | 5.5 | 8 | 3 |
| T155 1205 | M12 x 1 | 1 | 11 | 100 | 22 | 9 | 7 | 10 | 3 |
| T155 1206 | M12 x 1.25 | 1.25 | 10.8 | 100 | 22 | 9 | 7 | 10 | 3 |
| T155 1207 | M12 x 1.5 | 1.5 | 10.5 | 100 | 22 | 9 | 7 | 10 | 3 |
| T155 1406 | M14 x 1.25 | 1.25 | 12.8 | 100 | 22 | 11 | 9 | 12 | 3 |
| T155 1407 | M14 x 1.5 | 1.5 | 12.5 | 100 | 22 | 11 | 9 | 12 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T155 |
| Type | Spiral point (gun) tap |
| Thread series | Metric fine (MF) |
| Material | HSSE |
| Finish | Bright |
| Designation | N |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | ISO 3 / 6G |
| Standard | DIN 374 |
| Flutes | 3 |
| Sizes in this listing | 11 sizes, M6 x 0.75 to M14 x 1.5 |
Related products
Related Sutton taps: T154 Metric Fine Spiral Point Tap - HSSE - Bright - DIN 374, T157 Metric Fine Spiral Point Tap - HSSE - TiN - DIN 374, T158 Metric Fine Spiral Point Tap VA - HSSE - Steam Oxide - DIN 374, T160 Metric Fine Spiral Point Tap VA PM - PM-HSSE V3 - TiCN - DIN 374, T406 Metric Fine Spiral Point Tap Intermediate - HSSE - Bright - ISO 529.
