Sutton T160 M6 x 0.75 Spiral Point Tap VA PM - PM-HSSE V3 - TiCN - DIN 374
Available
The Sutton T160 is a spiral point (gun) tap (VA PM designation) for metric fine (MF) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a TiCN coating. This listing covers 7 sizes from M6 x 0.75 to M20 x 1.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is 6HX. The tap is built to DIN 374: reduced shank with square drive.
Where this product is used
- Use in stainless steels and high strength steels up to 1000 N/mm2.
- Through holes.
- Suitable for synchronous tapping in machine operations.
- Depths up to approx. 3 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance 6HX.
- The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel.
- PM-HSSE V3 offers higher edge hardness than standard VA series.
- DIN 374 construction, reduced shank with square drive.
Sizes

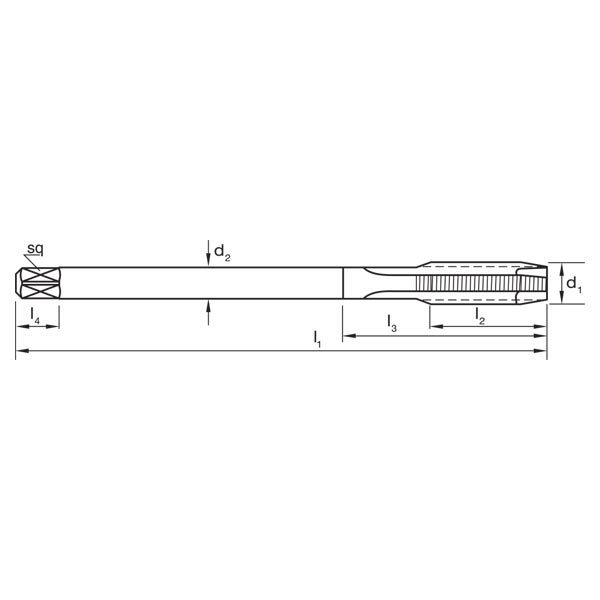

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T160 0604 | M6 x 0.75 | 0.75 | 5.3 | 80 | 14 | 4.5 | 3.4 | 6 | 3 |
| T160 0803 | M8 x 0.5 | 0.5 | 7.5 | 80 | 18 | 6 | 4.9 | 8 | 3 |
| T160 1004 | M10 x 0.75 | 0.75 | 9.3 | 90 | 20 | 7 | 5.5 | 8 | 3 |
| T160 1206 | M12 x 1.25 | 1.25 | 10.8 | 100 | 22 | 9 | 7 | 10 | 3 |
| T160 1406 | M14 x 1.25 | 1.25 | 12.8 | 100 | 22 | 11 | 9 | 12 | 3 |
| T160 1605 | M16 x 1 | 1 | 15 | 100 | 22 | 12 | 9 | 12 | 3 |
| T160 2005 | M20 x 1 | 1 | 19 | 125 | 25 | 16 | 12 | 15 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T160 |
| Type | Spiral point (gun) tap |
| Thread series | Metric fine (MF) |
| Material | PM-HSSE V3 |
| Finish | TiCN |
| Designation | VA PM |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | 6HX |
| Standard | DIN 374 |
| Flutes | 3 to 4 |
| Sizes in this listing | 7 sizes, M6 x 0.75 to M20 x 1 |
Related products
Related Sutton taps: T158 Metric Fine Spiral Point Tap VA - HSSE - Steam Oxide - DIN 374, T157 Metric Fine Spiral Point Tap - HSSE - TiN - DIN 374, T155 Metric Fine Spiral Point Tap - HSSE - Bright - DIN 374, T154 Metric Fine Spiral Point Tap - HSSE - Bright - DIN 374, T406 Metric Fine Spiral Point Tap Intermediate - HSSE - Bright - ISO 529.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

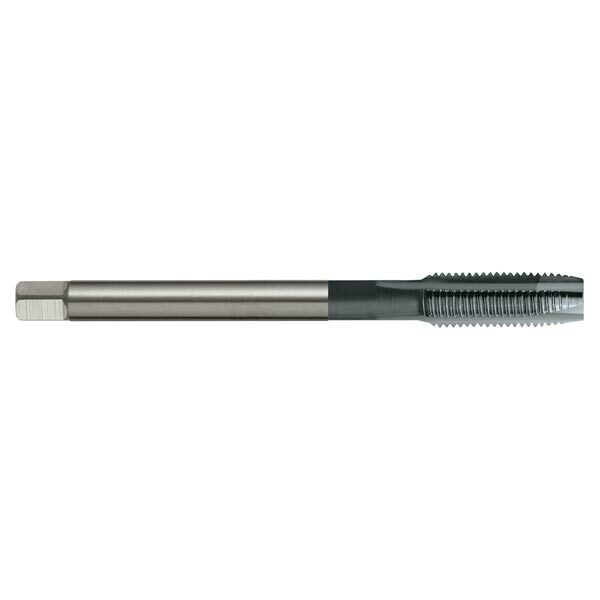

Sutton T160 Metric Fine Spiral Point Tap VA PM - PM-HSSE V3 - TiCN - DIN 374: MF6
