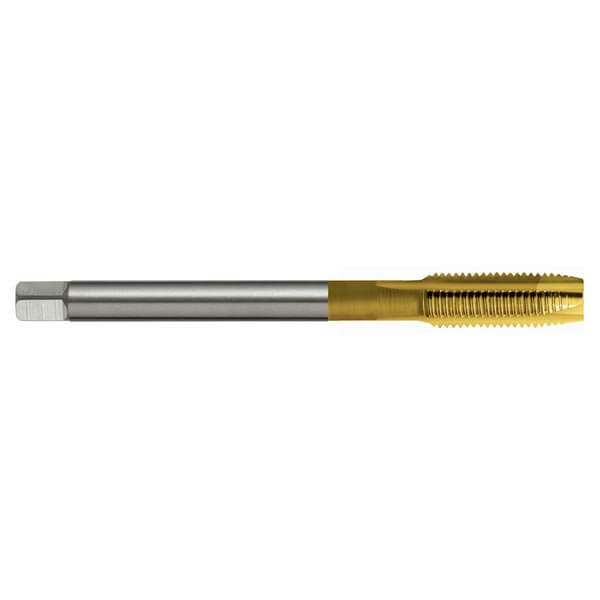

Sutton T157 M6 x 0.75 Spiral Point Tap - HSSE - TiN - DIN 374
Available
The Sutton T157 is a spiral point (gun) tap (N designation) for metric fine (MF) threads, made from premium grade high speed steel (HSSE) with a gold titanium nitride (TiN) coating. This listing covers 14 sizes from M6 x 0.75 to M20 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 374: reduced shank with square drive.
Where this product is used
- General purpose use, materials up to approx. 1000 N/mm2.
- Through holes.
- Suitable for machine operations.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Gold titanium nitride (TiN) coating for 3 to 8 times longer tool life than uncoated tools, with higher speeds and feeds.
- 3 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance ISO 2 / 6H.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- DIN 374 construction, reduced shank with square drive.
Sizes

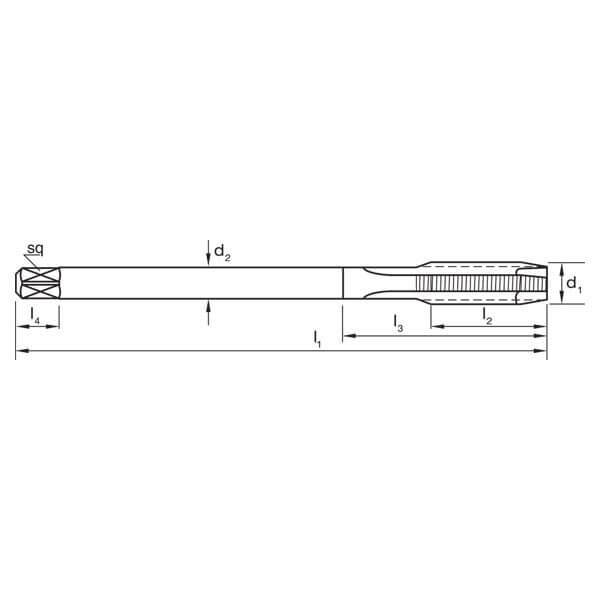

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T157 0604 | M6 x 0.75 | 0.75 | 5.3 | 80 | 14 | 4.5 | 3.4 | 6 | 3 |
| T157 0803 | M8 x 0.5 | 0.5 | 7.5 | 80 | 18 | 6 | 4.9 | 8 | 3 |
| T157 0804 | M8 x 0.75 | 0.75 | 7.3 | 80 | 18 | 6 | 4.9 | 8 | 3 |
| T157 0805 | M8 x 1 | 1 | 7 | 90 | 22 | 6 | 4.9 | 8 | 3 |
| T157 1005 | M10 x 1 | 1 | 9 | 90 | 20 | 7 | 5.5 | 8 | 3 |
| T157 1006 | M10 x 1.25 | 1.25 | 8.8 | 100 | 24 | 7 | 5.5 | 8 | 3 |
| T157 1205 | M12 x 1 | 1 | 11 | 100 | 22 | 9 | 7 | 10 | 3 |
| T157 1206 | M12 x 1.25 | 1.25 | 10.8 | 100 | 22 | 9 | 7 | 10 | 3 |
| T157 1207 | M12 x 1.5 | 1.5 | 10.5 | 100 | 22 | 9 | 7 | 10 | 3 |
| T157 1406 | M14 x 1.25 | 1.25 | 12.8 | 100 | 22 | 11 | 9 | 12 | 3 |
| T157 1407 | M14 x 1.5 | 1.5 | 12.5 | 100 | 22 | 11 | 9 | 12 | 3 |
| T157 1607 | M16 x 1.5 | 1.5 | 14.5 | 100 | 22 | 12 | 9 | 12 | 3 |
| T157 1807 | M18 x 1.5 | 1.5 | 16.5 | 110 | 25 | 14 | 11 | 14 | 4 |
| T157 2007 | M20 x 1.5 | 1.5 | 18.5 | 125 | 25 | 16 | 12 | 15 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T157 |
| Type | Spiral point (gun) tap |
| Thread series | Metric fine (MF) |
| Material | HSSE |
| Finish | TiN |
| Designation | N |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 374 |
| Flutes | 3 to 4 |
| Sizes in this listing | 14 sizes, M6 x 0.75 to M20 x 1.5 |
