Sutton T406 M8 x 1 Spiral Point Tap Intermediate - HSSE - Bright - ISO 529
Available

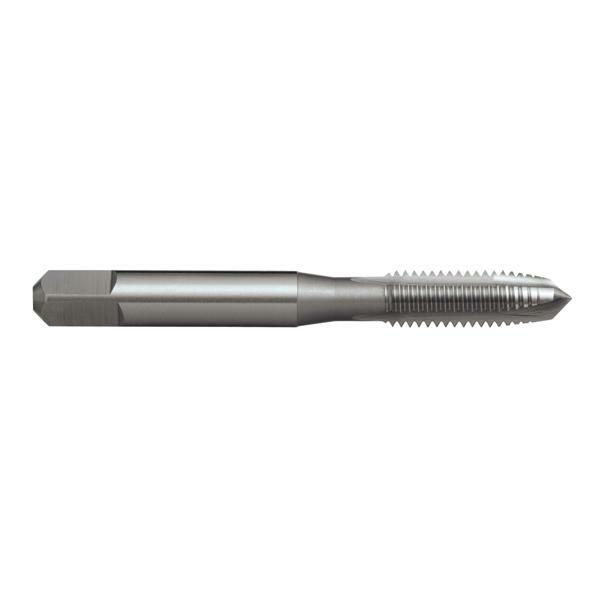

The Sutton T406 is a spiral point (gun) tap (intermediate chamfer) for metric fine (MF) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 3 sizes from M8 x 1 to M12 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The thread tolerance is ISO 2 / 6H. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through holes.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- 3 flutes.
- Intermediate chamfer (Form D), generally for through holes.
- Thread tolerance ISO 2 / 6H.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T406 0805 | M8 x 1 | 1 | 7 | 72 | 22 | 30 | 8 | 6.3 | 9 | 3 |
| T406 1006 | M10 x 1.25 | 1.25 | 8.8 | 80 | 24 | 34 | 10 | 8 | 11 | 3 |
| T406 1207 | M12 x 1.5 | 1.5 | 10.5 | 89 | 29 | - | 9 | 7.1 | 10 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T406 |
| Type | Spiral point (gun) tap |
| Thread series | Metric fine (MF) |
| Material | HSSE |
| Finish | Bright |
| Chamfer | Intermediate (Form D) |
| Thread tolerance | ISO 2 / 6H |
| Standard | ISO 529 |
| Flutes | 3 |
| Sizes in this listing | 3 sizes, M8 x 1 to M12 x 1.5 |
Related products
Related Sutton taps: T407 Metric Fine Spiral Point Tap Intermediate - HSSE - Steam Oxide - ISO 529, T408 Metric Fine Spiral Point Tap Intermediate - HSSE - TiN - ISO 529, T160 Metric Fine Spiral Point Tap VA PM - PM-HSSE V3 - TiCN - DIN 374, T158 Metric Fine Spiral Point Tap VA - HSSE - Steam Oxide - DIN 374, T157 Metric Fine Spiral Point Tap - HSSE - TiN - DIN 374.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T406 Metric Fine Spiral Point Tap Intermediate - HSSE - Bright - ISO 529: MF8
SKU: A0015070 | Model: T4060805
Diameter (metric) MF8. Features
The Sutton T406 is a spiral point (gun) tap (intermediate chamfer) for metric fine (MF) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 3 sizes from M8 x 1 to M12 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The thread tolerance is ISO 2 / 6H. The tap is built to ISO 529: short machine tap construction.
