Sutton T407 M5 x 0.5 Spiral Point Tap Intermediate - HSSE - Steam Oxide - ISO 529
Available

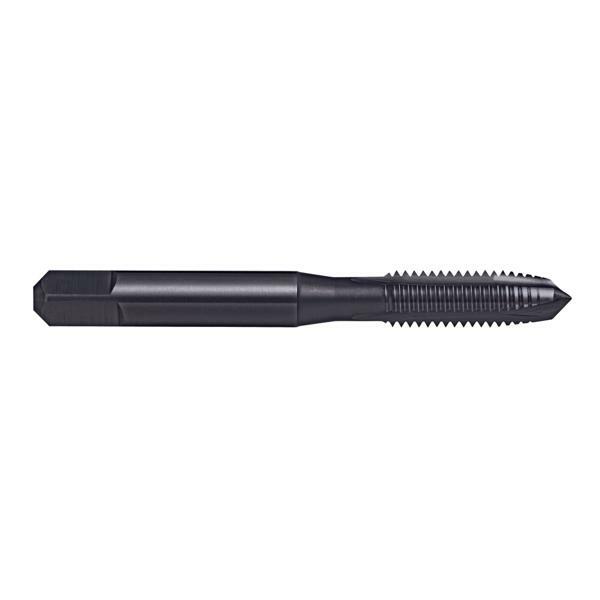

The Sutton T407 is a spiral point (gun) tap (intermediate chamfer) for metric fine (MF) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 12 sizes from M5 x 0.5 to M22 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The thread tolerance is ISO 2 / 6H. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through holes.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 to 4 flutes, depending on size.
- Intermediate chamfer (Form D), generally for through holes.
- Thread tolerance ISO 2 / 6H.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T407 0503 | M5 x 0.5 | 0.5 | 4.5 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T407 0604 | M6 x 0.75 | 0.75 | 5.3 | 66 | 19 | 26 | 6.3 | 5 | 8 | 3 |
| T407 0805 | M8 x 1 | 1 | 7 | 72 | 22 | 30 | 8 | 6.3 | 9 | 3 |
| T407 1005 | M10 x 1 | 1 | 9 | 80 | 24 | 34 | 10 | 8 | 11 | 3 |
| T407 1006 | M10 x 1.25 | 1.25 | 8.8 | 80 | 24 | 34 | 10 | 8 | 11 | 3 |
| T407 1206 | M12 x 1.25 | 1.25 | 10.8 | 89 | 29 | - | 9 | 7.1 | 10 | 3 |
| T407 1207 | M12 x 1.5 | 1.5 | 10.5 | 89 | 29 | - | 9 | 7.1 | 10 | 3 |
| T407 1407 | M14 x 1.5 | 1.5 | 12.5 | 95 | 30 | - | 11.2 | 9 | 12 | 3 |
| T407 1607 | M16 x 1.5 | 1.5 | 14.5 | 102 | 32 | - | 12.5 | 10 | 13 | 3 |
| T407 1807 | M18 x 1.5 | 1.5 | 16.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T407 2007 | M20 x 1.5 | 1.5 | 18.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T407 2207 | M22 x 1.5 | 1.5 | 20.5 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T407 |
| Type | Spiral point (gun) tap |
| Thread series | Metric fine (MF) |
| Material | HSSE |
| Finish | Steam Oxide |
| Chamfer | Intermediate (Form D) |
| Thread tolerance | ISO 2 / 6H |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 12 sizes, M5 x 0.5 to M22 x 1.5 |
