Sutton T158 M6 x 0.75 Spiral Point Tap VA - HSSE - Steam Oxide - DIN 374
Available

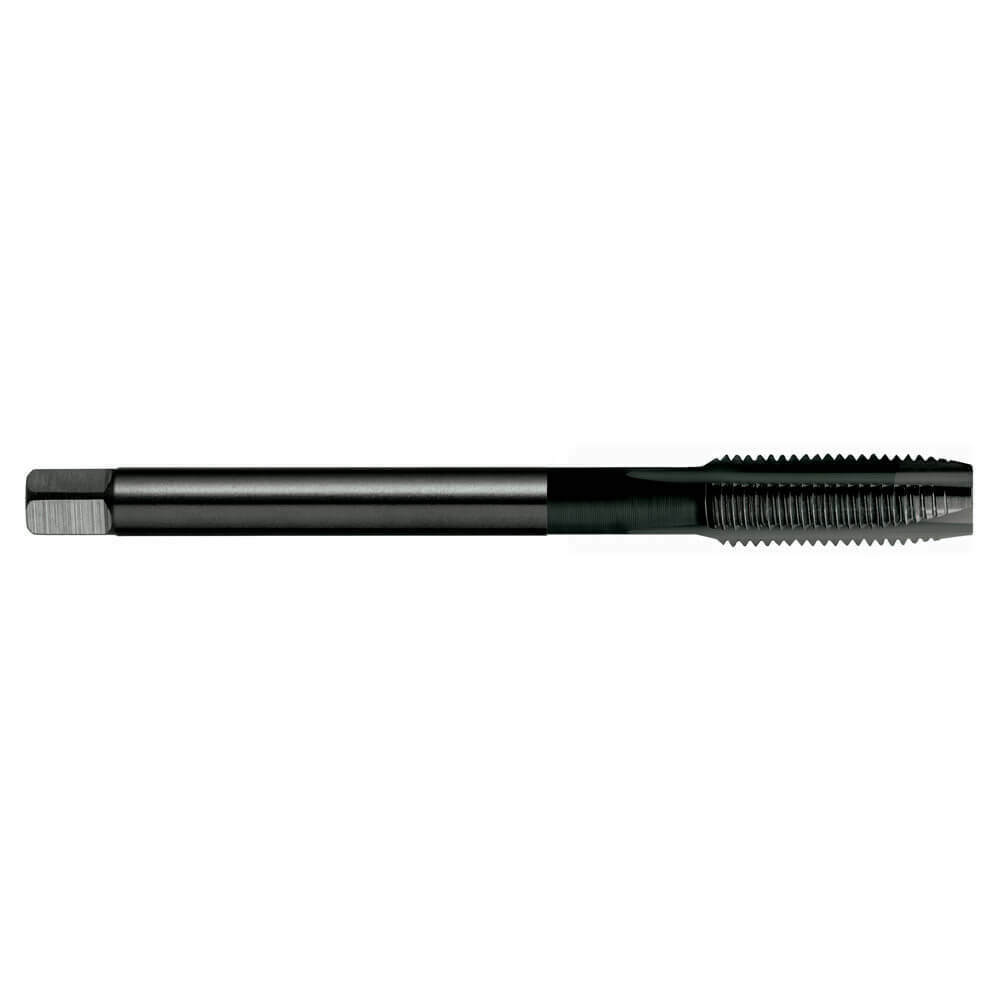

The Sutton T158 is a spiral point (gun) tap (VA designation) for metric fine (MF) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 18 sizes from M6 x 0.75 to M20 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The VA designation is for stainless and tough steels, with a high rake angle and thread relief, so the chip flows continuously in an axial direction. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 374: reduced shank with square drive.
Where this product is used
- Use in stainless steels and high strength steels up to 1000 N/mm2.
- Through holes.
- Suitable for machine operations.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance ISO 2 / 6H.
- The VA designation is for stainless and tough steels, with a high rake angle and thread relief, so the chip flows continuously in an axial direction.
- DIN 374 construction, reduced shank with square drive.
Sizes

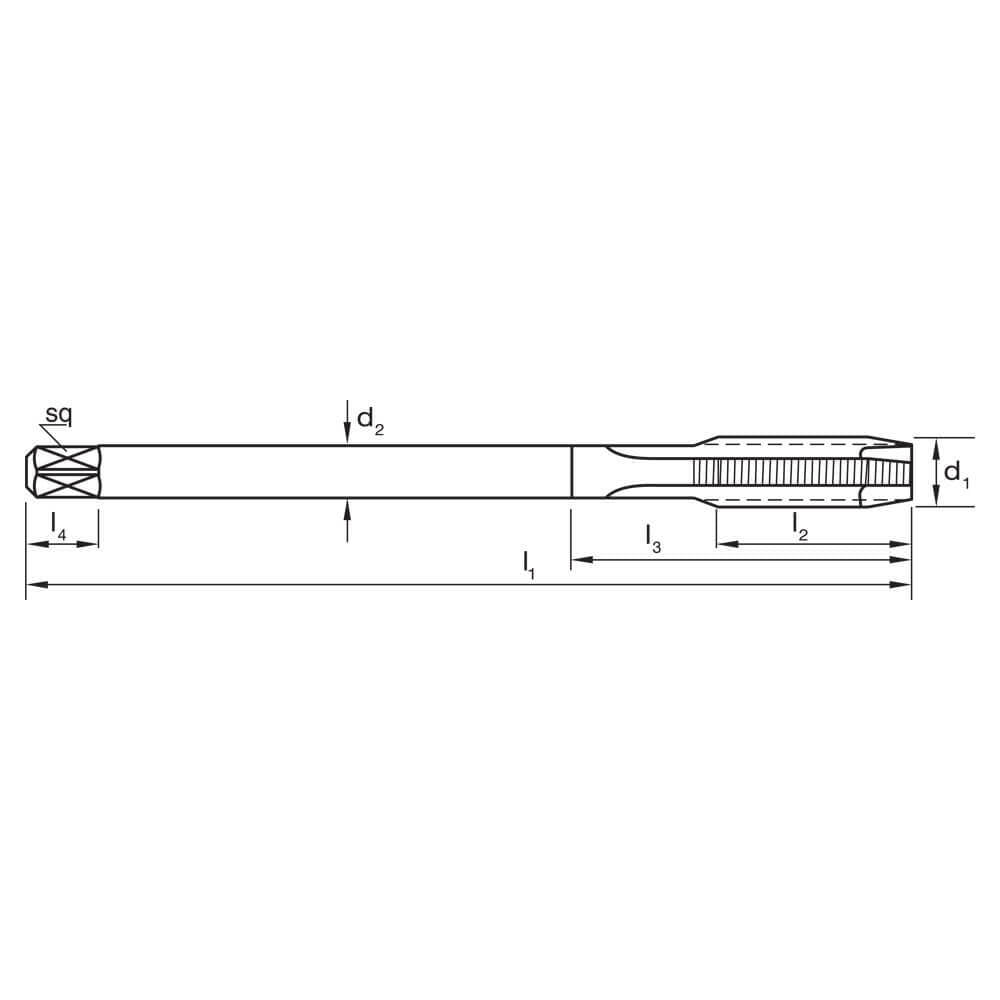

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T158 0604 | M6 x 0.75 | 0.75 | 5.3 | 80 | 14 | 4.5 | 3.4 | 6 | 3 |
| T158 0803 | M8 x 0.5 | 0.5 | 7.5 | 80 | 18 | 6 | 4.9 | 8 | 3 |
| T158 0804 | M8 x 0.75 | 0.75 | 7.3 | 80 | 18 | 6 | 4.9 | 8 | 3 |
| T158 0805 | M8 x 1 | 1 | 7 | 90 | 22 | 6 | 4.9 | 8 | 3 |
| T158 1004 | M10 x 0.75 | 0.75 | 9.3 | 90 | 20 | 7 | 5.5 | 8 | 3 |
| T158 1005 | M10 x 1 | 1 | 9 | 90 | 20 | 7 | 5.5 | 8 | 3 |
| T158 1006 | M10 x 1.25 | 1.25 | 8.8 | 100 | 24 | 7 | 5.5 | 8 | 3 |
| T158 1205 | M12 x 1 | 1 | 11 | 100 | 22 | 9 | 7 | 10 | 3 |
| T158 1206 | M12 x 1.25 | 1.25 | 10.8 | 100 | 22 | 9 | 7 | 10 | 3 |
| T158 1207 | M12 x 1.5 | 1.5 | 10.5 | 100 | 22 | 9 | 7 | 10 | 3 |
| T158 1405 | M14 x 1 | 1 | 13 | 100 | 22 | 11 | 9 | 12 | 3 |
| T158 1406 | M14 x 1.25 | 1.25 | 12.8 | 100 | 22 | 11 | 9 | 12 | 3 |
| T158 1407 | M14 x 1.5 | 1.5 | 12.5 | 100 | 22 | 11 | 9 | 12 | 3 |
| T158 1605 | M16 x 1 | 1 | 15 | 100 | 22 | 12 | 9 | 12 | 3 |
| T158 1805 | M18 x 1 | 1 | 17 | 110 | 25 | 14 | 11 | 14 | 4 |
| T158 1807 | M18 x 1.5 | 1.5 | 16.5 | 110 | 25 | 14 | 11 | 14 | 4 |
| T158 2005 | M20 x 1 | 1 | 19 | 125 | 25 | 16 | 12 | 15 | 4 |
| T158 2007 | M20 x 1.5 | 1.5 | 18.5 | 125 | 25 | 16 | 12 | 15 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T158 |
| Type | Spiral point (gun) tap |
| Thread series | Metric fine (MF) |
| Material | HSSE |
| Finish | Steam Oxide |
| Designation | VA |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 374 |
| Flutes | 3 to 4 |
| Sizes in this listing | 18 sizes, M6 x 0.75 to M20 x 1.5 |
Related products
Related Sutton taps: T157 Metric Fine Spiral Point Tap - HSSE - TiN - DIN 374, T160 Metric Fine Spiral Point Tap VA PM - PM-HSSE V3 - TiCN - DIN 374, T155 Metric Fine Spiral Point Tap - HSSE - Bright - DIN 374, T154 Metric Fine Spiral Point Tap - HSSE - Bright - DIN 374, T406 Metric Fine Spiral Point Tap Intermediate - HSSE - Bright - ISO 529.
