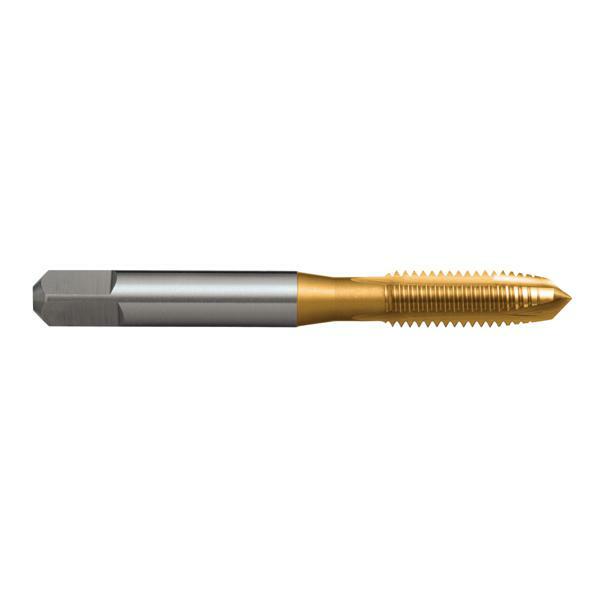

Sutton T408 M10 x 1.25 Spiral Point Tap Intermediate - HSSE - TiN - ISO 529
Available
The Sutton T408 is a spiral point (gun) tap (intermediate chamfer) for metric fine (MF) threads, made from premium grade high speed steel (HSSE) with a gold titanium nitride (TiN) coating. This listing covers 3 sizes from M8 x 1 to M12 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The thread tolerance is ISO 2 / 6H. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through holes.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Gold titanium nitride (TiN) coating for 3 to 8 times longer tool life than uncoated tools, with higher speeds and feeds.
- 3 flutes.
- Intermediate chamfer (Form D), generally for through holes.
- Thread tolerance ISO 2 / 6H.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T408 0805 | M8 x 1 | 1 | 7 | 72 | 22 | 30 | 8 | 6.3 | 9 | 3 |
| T408 1006 | M10 x 1.25 | 1.25 | 8.8 | 80 | 24 | 34 | 10 | 8 | 11 | 3 |
| T408 1207 | M12 x 1.5 | 1.5 | 10.5 | 89 | 29 | - | 9 | 7.1 | 10 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T408 |
| Type | Spiral point (gun) tap |
| Thread series | Metric fine (MF) |
| Material | HSSE |
| Finish | TiN |
| Chamfer | Intermediate (Form D) |
| Thread tolerance | ISO 2 / 6H |
| Standard | ISO 529 |
| Flutes | 3 |
| Sizes in this listing | 3 sizes, M8 x 1 to M12 x 1.5 |
