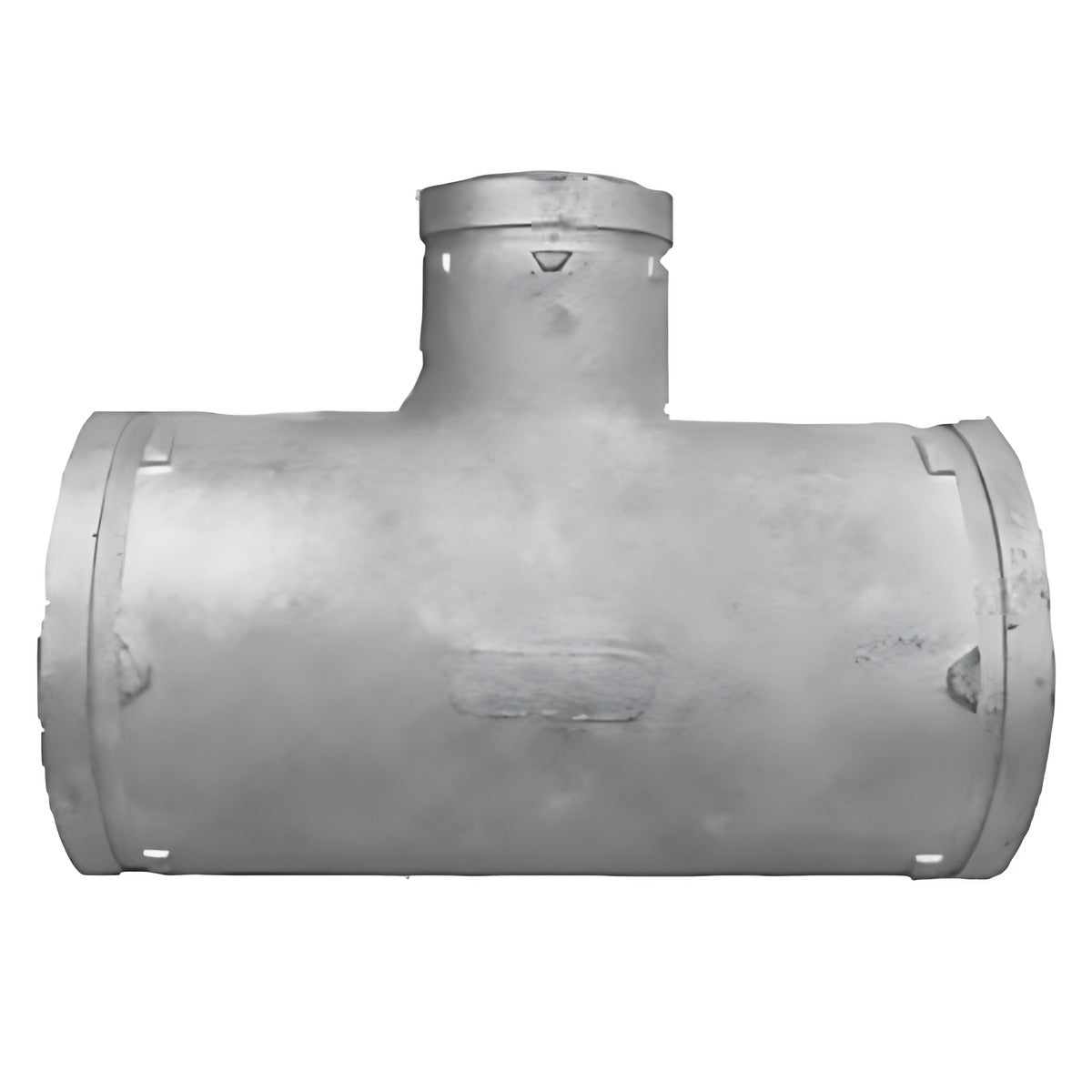

Dixon FWG-TEE-114-88 4 x 4 x 3" (100 x 100 x 80 mm) Roll Grooved Reducing Tee
Available
This Dixon roll grooved reducing tee has a run of one size and a smaller roll grooved branch, so a smaller line can leave a larger main without an adaptor. It is ductile iron (ASTM A536) with a hot dip galvanised finish (AS4680) (manufacturer-stated).
The store lists six sizes from 4 x 4 x 2" to 8 x 8 x 4" (100 x 100 x 50 to 200 x 200 x 100 mm). Dixon rates the range at 300 PSI and gives centre-to-end dimensions from 102 to 175 mm. It compares the range with Victaulic No. 25 (manufacturer-stated).
Where this product is used
- Fire protection, water transmission and treatment, and irrigation pipework where a grooved system is used instead of flanged or welded joints (manufacturer-stated).
- Branch lines that are smaller than the main, for example a 50 NB take-off from a 100 NB or 150 NB fire services main.
Features
- Reducing tee with three roll grooved ends (manufacturer-stated)
- Ductile iron (ASTM A536), hot dip galvanised finish (AS4680) (manufacturer-stated)
- Working pressure: 300 PSI (manufacturer-stated)
- Run sizes 100, 150 and 200 NB; branch sizes 50, 80, 100 and 150 NB (manufacturer-stated)
- Comparable to Victaulic No. 25 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | Ductile iron (ASTM A536) |
| Finish | Hot dip galvanised (AS4680) (manufacturer-stated) |
| Ends | Roll grooved, three ends |
| Working pressure | 300 PSI |
| Approvals | Dixon lists the grooved fittings range as UL listed and FM approved (manufacturer-stated) |
| Comparable to | Victaulic No. 25 (manufacturer-stated) |
Key specifications
| Dixon part number | Size (NB, run x branch) | Pipe OD (mm) | Working pressure | Centre-to-end (mm) |
|---|---|---|---|---|
| FWG-TEE-114-60 | 100 x 50 | 114.3 x 60.3 | 300 PSI | 102 |
| FWG-TEE-114-88 | 100 x 80 | 114.3 x 88.9 | 300 PSI | 102 |
| FWG-TEE-165-114 | 150 x 100 | 165.1 x 114.3 | 300 PSI | 140 |
| FWG-TEE-165-60 | 150 x 50 | 165.1 x 60.3 | 300 PSI | 140 |
| FWG-TEE-165-88 | 150 x 80 | 165.1 x 88.9 | 300 PSI | 140 |
| FWG-TEE-219-114 | 200 x 100 | 219.1 x 114.3 | 300 PSI | 175 |
Dixon's catalogue lists each reducing tee by run and branch, for example 100 x 50; the store names it with the run twice, for example 100 x 100 x 50 mm. Dixon also lists a 100 x 80 and a 200 x 150 reducing tee (the 100 x 80 is FWG-TEE-114-88, which is in this product; the 200 x 150 is FWG-TEE-219-165, which is not).
Selecting the right option
Name the run size first and the branch size second. A 150 x 100 tee has a 150 NB run and a 100 NB branch. Confirm the pipe OD of the run and the branch, because the 150 NB size is also made in a 168.3 mm OD in other Dixon grooved ranges. Each of the three ends needs a grooved coupling and gasket.
Related products
Related Dixon grooved tees: Dixon Roll Grooved Equal Tee Short Style 110S - Galvanised, Dixon Roll Grooved Mechanical Tee Galvanised and Dixon 100 x 100 x 25mm Standard Roll Grooved Tee with BSP Outlet - Galvanised. Couplings: Dixon Roll Grooved Rigid Coupling - Galvanised and Dixon Roll Grooved Coupling Flexible Heavy Duty Galvanised.
