Dixon FWG-20-114S 4" (100 mm) Roll Grooved Equal Tee Short Style 110S - Galvanised
Available

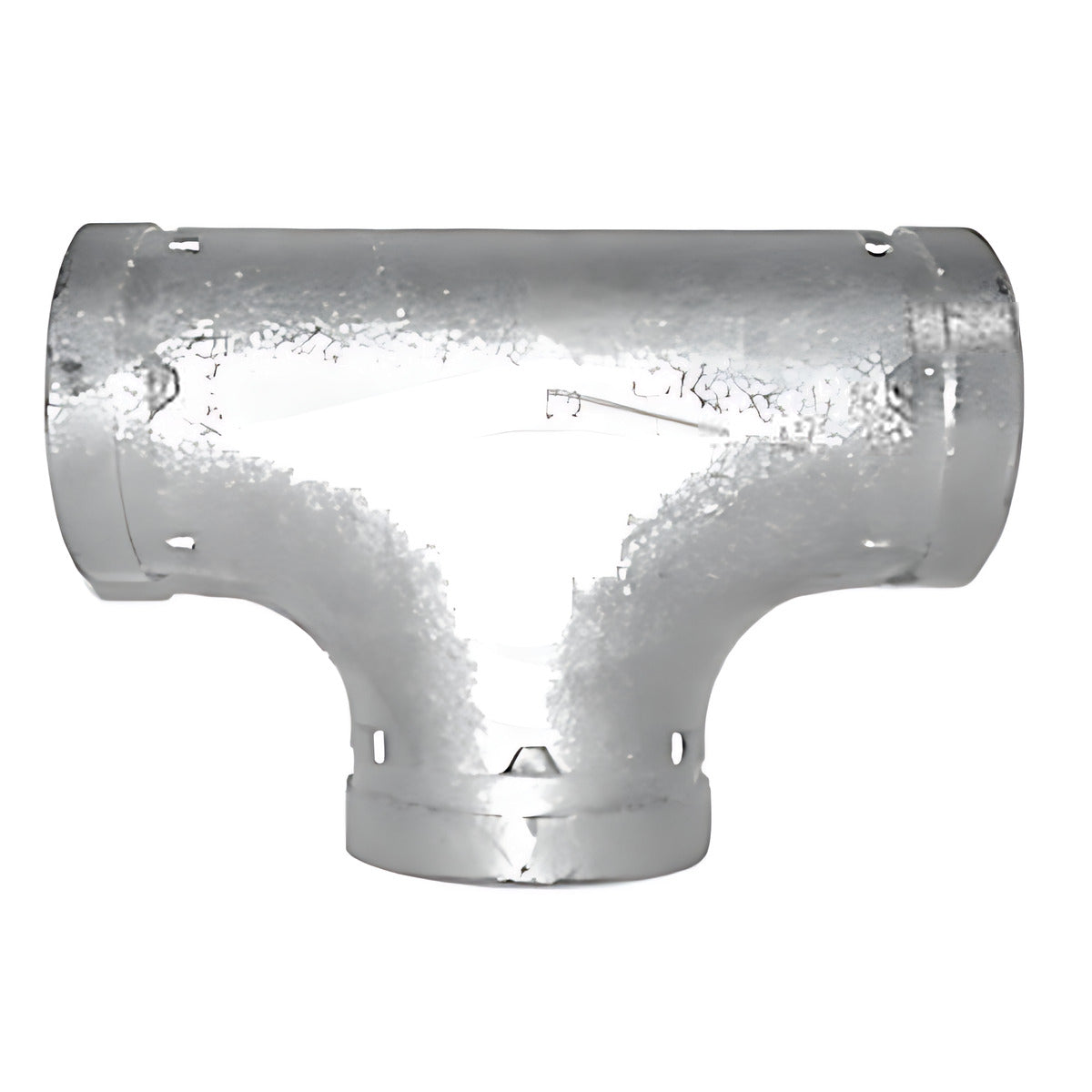

This Dixon roll grooved equal tee is the short pattern, sold as Style 110S in the store, with three roll grooved ends of the same size. It is ductile iron (ASTM A536) with a hot dip galvanised finish (AS4680), and the store lists it in 4", 6" and 8" (100, 150 and 200 NB) (manufacturer-stated).
Dixon rates the grooved equal tee range at 300 PSI. The centre-to-end dimensions for these sizes are 102, 140 and 175 mm. Dixon compares the range with Victaulic No. 002 and lists it as UL listed and FM approved (manufacturer-stated).
Where this product is used
- Fire protection, water transmission and treatment, and irrigation pipework where a grooved system is used instead of flanged or welded joints (manufacturer-stated).
- Taking a branch of the same size off a roll grooved main in fire protection and irrigation pipework.
Features
- Equal tee, three roll grooved ends (manufacturer-stated)
- Ductile iron (ASTM A536), hot dip galvanised finish (AS4680) (manufacturer-stated)
- Working pressure: 300 PSI (manufacturer-stated)
- Dixon lists the range as UL listed and FM approved (manufacturer-stated)
- Comparable to Victaulic No. 002 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | Ductile iron (ASTM A536) |
| Finish | Hot dip galvanised (AS4680) (manufacturer-stated) |
| Ends | Roll grooved, three ends |
| Working pressure | 300 PSI |
| Approvals | UL listed and FM approved (manufacturer-stated) |
| Comparable to | Victaulic No. 002 (manufacturer-stated) |
| Sizes | 100, 150 and 200 NB |
Key specifications
| Dixon part number | Size (NB) | Pipe OD (mm) | Working pressure | Centre-to-end (mm) |
|---|---|---|---|---|
| FWG-20-114S | 4" (100 mm) | 114.3 | 300 PSI | 102 |
| FWG-20-165S | 6" (150 mm) | 165.1 | 300 PSI | 140 |
| FWG-20-219S | 8" (200 mm) | 219.1 | 300 PSI | 175 |
Dixon also lists this tee in 32 to 80 NB and in 250 and 300 NB, and a 150 USA size with a 168.3 mm pipe OD. Those sizes are not part of this product.
Selecting the right option
Use an equal tee when all three branches carry the same pipe size. If the branch is smaller, look at the reducing tee or the mechanical tee in Related products. Confirm the pipe OD before ordering, and fit a grooved coupling and a suitable gasket on each end.
Related products
Related Dixon grooved tees: Dixon Roll Grooved Reducing Tee - Galvanised, Dixon Roll Grooved Mechanical Tee Galvanised and Dixon Roll Grooved Equal Tee Short Style 110 - Galvanised. Couplings: Dixon Roll Grooved Rigid Coupling - Galvanised and Dixon Roll Grooved Coupling Flexible Heavy Duty Galvanised.
