Dixon FWG-20-76 2-1/2" (65 mm) Roll Grooved Equal Tee Short Style 110 - Galvanised

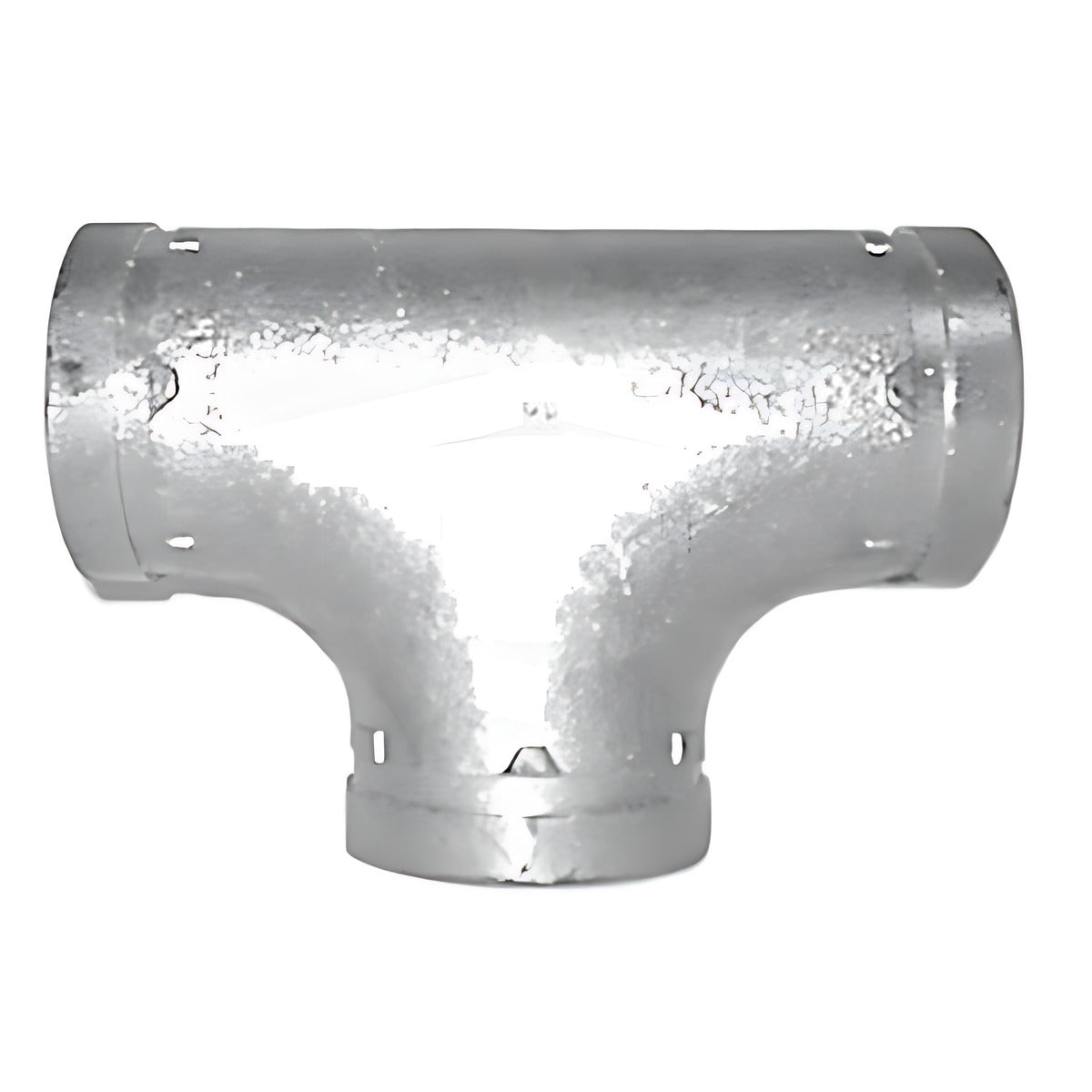

This Dixon roll grooved equal tee is the short pattern, sold as Style 110 in the store, with three roll grooved ends of the same size. The store lists it in 2-1/2" (65 NB) and 10" (250 NB) (manufacturer-stated).

Dixon's catalogue lists its grooved equal tees in ductile iron (ASTM A536) with a hot dip galvanised finish (AS4680), rated at 300 PSI, and shows the 65 and 250 NB sizes with an S suffix (FWG-20-76S and FWG-20-273S). The two part numbers on this page are printed without the suffix, so confirm the pattern with us if the suffix matters for your job (manufacturer-stated).

Where this product is used

• Fire protection, water transmission and treatment, and irrigation pipework where a grooved system is used instead of flanged or welded joints (manufacturer-stated).
• Splitting a roll grooved line into two equal branches in fire protection and irrigation pipework.

Features

• Equal tee with three roll grooved ends (manufacturer-stated)
• Dixon grooved equal tee range: ductile iron (ASTM A536), hot dip galvanised (AS4680) (manufacturer-stated)
• Range working pressure: 300 PSI (manufacturer-stated)
• Dixon lists the range as UL listed and FM approved (manufacturer-stated)

Common specifications

Key specifications

Dixon's catalogue prints these two sizes as FWG-20-76S (65 NB) and FWG-20-273S (250 NB). Pressure and dimensions are not repeated for FWG-20-76 and FWG-20-273 because the catalogue does not list those exact part numbers.

Selecting the right option

Check the pipe OD as well as the nominal size: Dixon lists 150 NB in two outside diameters (165.1 mm and 168.3 mm), so confirm the OD of your pipe or fittings for the larger sizes. Each end needs a grooved coupling and a gasket suited to the fluid. For hydrocarbons a nitrile gasket is listed by Dixon, while EPDM suits water (manufacturer-stated).

Related products

Related Dixon grooved fittings: Dixon Roll Grooved Equal Tee Short Style 110S - Galvanised, Dixon Roll Grooved Reducing Tee - Galvanised and Dixon Roll Grooved Mechanical Tee Galvanised. Couplings: Dixon Roll Grooved Rigid Coupling - Galvanised and Dixon Roll Grooved Coupling Flexible Heavy Duty Galvanised.
