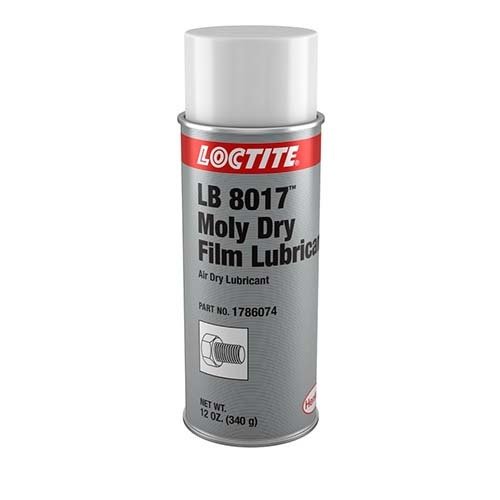

Loctite LB 8017 Moly Dry Film Lubricant 340g

Loctite LB 8017 is a molybdenum disulphide based solid film lubricant. It is a black, one-component product used for lubrication and anti-seize, and the film does not flake when scratched with a blunt object.

Henkel states it may be applied by brushing, dipping or spraying directly to clean metal surfaces. It air-dries in 60 minutes at 25 °C, and oven curing thermosets the film.

Where this product is used

• Lubrication of clean metal surfaces
• Continuous sliding friction applications from -29 °C to +400 °C
• Anti-seize lubrication from -29 °C to +1315 °C
• Anti-seize lubrication, where Henkel's torque coefficient K on 12.7 mm grade 8 bolts with grade 5 nuts is 0.06 to 0.12 lubricated

Features

• Molybdenum disulphide based solid film lubricant
• One component, no mixing
• Black film that does not flake when scratched with a blunt object
• Air-dries in 60 minutes at 25 °C
• Oven curing thermosets the film; cured films resist most solvents and fluids
• Air-dried film withstands water and water solutions
• Solids content 48 to 53 % non-volatile

Key specifications

Selecting the right option

LB 8017 is a dry film. For an anti-seize compound that is not a dry film see Loctite LB 8504 Graphite Synthetic Anti-Seize Lubricant - 454g or Loctite 771 Nickel Anti-Seize Lubricant 500g.

Using it

Apply by brushing, dipping or spraying directly to clean metal surfaces. Let the film air-dry; drying time is 60 minutes at 25 °C.

To thermoset the film, heat at 260 °C for 0.5 h, 232 °C for 1.0 h or 204 °C for 2.0 h. Oven-cured films resist most solvents and fluids.

The air-dried film withstands water and water solutions, but organic solvents and oils can soften and dissolve it.

Storage and handling

Store unopened in a dry location, ideally between 8 °C and 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidising materials. Henkel's data are for reference only and are not product specifications. Read the safety data sheet before use.

Frequently asked questions

What temperature range does Loctite LB 8017 cover?

For continuous sliding friction, -29 °C to +400 °C. As an anti-seize lubricant, -29 °C to +1315 °C.

How long does Loctite LB 8017 take to dry?

It air-dries in 60 minutes at 25 °C. Heating at 260 °C for 0.5 h, 232 °C for 1.0 h or 204 °C for 2.0 h thermosets the film.

What area does Loctite LB 8017 cover?

Henkel gives 55.7 m² per 4.5 kg at 0.018 mm dry film thickness.

How is Loctite LB 8017 applied?

Henkel says it may be applied by brushing, dipping or spraying directly to clean metal surfaces.

Will oil or solvent remove Loctite LB 8017?

The air-dried film can be softened and dissolved by organic solvents and oils, but it withstands water and water solutions. Oven-cured films resist most solvents and fluids.

Does Loctite LB 8017 change bolt torque?

Henkel's torque coefficient (nut factor K) on 12.7 mm grade 8 bolts and grade 5 nuts is 0.06 to 0.12 lubricated, against 0.27 for solvent-cleaned, unlubricated parts.
