Sutton T237 Metric Spiral Flute Tap - R45 W - Premium HSS Blue1

Sutton T237 Metric Spiral Flute Tap - R45 W - Premium HSS Blue2

Sutton T2370300 M3 x 0.5 Spiral Flute Tap - R45 W - HSSE V3 Blue

Sutton T2370400 M4 x 0.7 Spiral Flute Tap - R45 W - HSSE V3 Blue

Sutton T2370500 M5 x 0.8 Spiral Flute Tap - R45 W - HSSE V3 Blue

Sutton T2370600 Metric M6 x 1 Spiral Flute Tap - R45 W - HSSE V3 Blue

Sutton T2370800 M8 x 1.25 Spiral Flute Tap - R45 W - HSSE V3 Blue

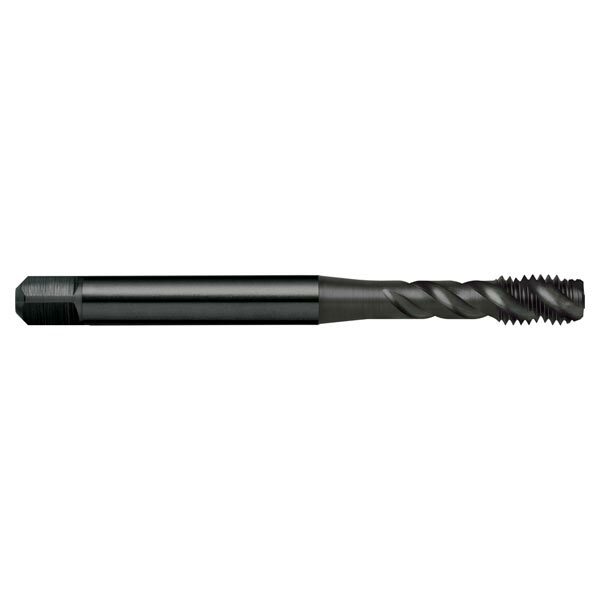

Sutton T2371000 M10 x 1.5 Spiral Flute Tap - R45 W - HSSE V3 Blue

Specifications +

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Features & Benefits +

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T237 Metric Spiral Flute Tap - R45 W - Premium HSS Blue

SKU: A0013763

Type: Spiral Flute Tap

$46.83

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton Metric Spiral Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue

Specifications +

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Features & Benefits +

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:

M3mm spiral flute tap
Model Number: T2370300
M4mm spiral flute tap
Model Number: T2370400
M5mm spiral flute tap
Model Number: T2370500
M6mm spiral flute tap
Model Number: T2370600
M8mm spiral flute tap
Model Number: T2370800
M10mm spiral flute tap
Model Number: T2371000
