Description
Description

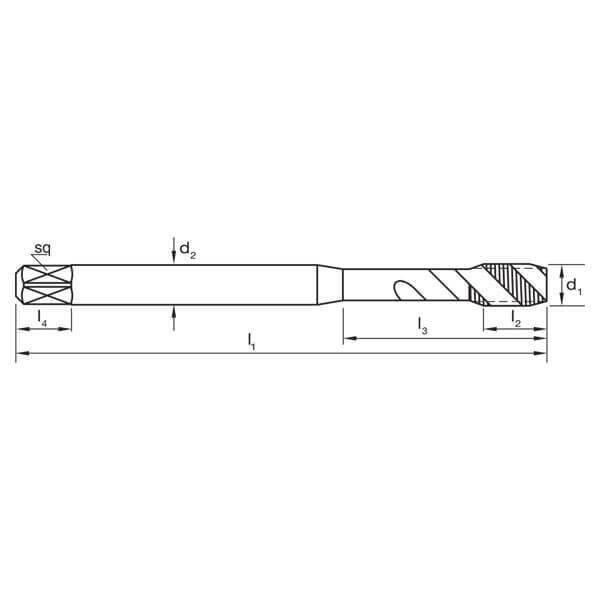

Dimensions
- d1 (mm): 0.125
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 6
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.6 (drill)
- TPI: 40 (TPI)
Features
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
Specifications
- Designation: N (for normal and general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNC
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Specifications
Specifications
Dimensions
- d1 (mm): 0.125
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 6
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.6 (drill)
- TPI: 40 (TPI)
Specifications
- Designation: N (for normal and general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNC
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Features & Benefits
Features & Benefits
Features
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

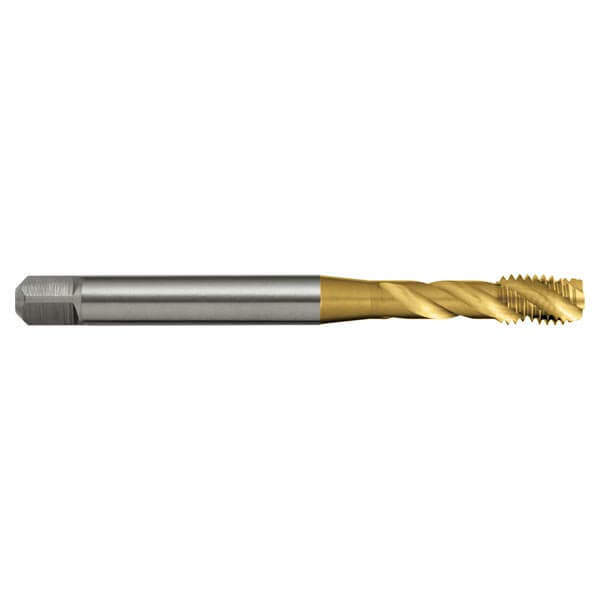

Sutton T273 UNC Spiral Flute Tap - R40 N - Premium HSS Tinite
Sutton T273 UNC Spiral Flute Tap - R40 N - Premium HSS Tinite
SKU: A0014077
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T273 UNC Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel HSSE-V3 material. It offers 40 TPI and is suitable for Machining.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1 (mm): 0.125
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 6
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.6 (drill)
- TPI: 40 (TPI)
Features
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
Specifications
- Designation: N (for normal and general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNC
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Specifications
Specifications
Dimensions
- d1 (mm): 0.125
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 6
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.6 (drill)
- TPI: 40 (TPI)
Specifications
- Designation: N (for normal and general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNC
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Features & Benefits
Features & Benefits
Features
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T273 UNC Spiral Flute Tap - R40 N - Premium HSS Tinite
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T273 UNC Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel HSSE-V3 material. It offers 40 TPI and is suitable for Machining. |
Regular price
From $46.62
Sale price
From $46.62
Regular price
Unit price
/per
| Sutton Tools |
Diameter (inch)
5,9/16
|
Choose your option
Sutton T273 UNC Spiral Flute Tap - R40 N - Premium HSS Tinite
Sutton T273 UNC Spiral Flute Tap - R40 N - Premium HSS Tinite
SKU: A0014077
Hurry up, only 6 items left in stock.
The Sutton T273 UNC Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel HSSE-V3 material. It offers 40 TPI and is suitable for Machining.
