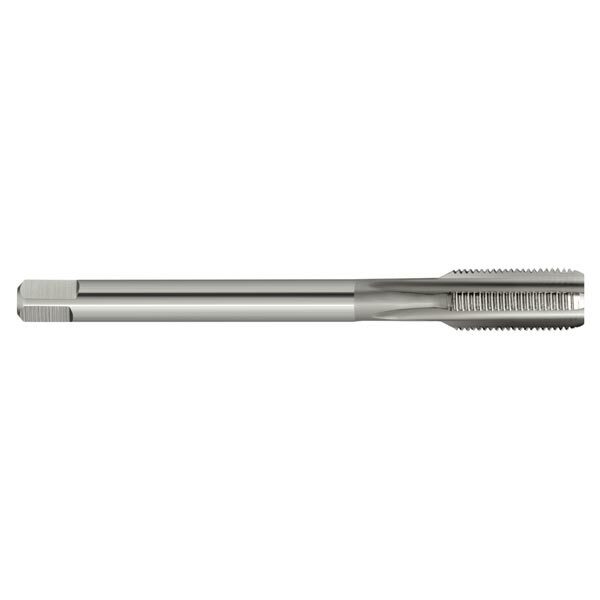

Sutton T2981805 Metric Fine MF18 x 1 Straight Flute Tap - HSSE V3
Sutton T2981807 Metric Fine MF18 x 1.5 Straight Flute Tap - HSSE V3
Sutton T2981808 Metric Fine MF18 x 2 Straight Flute Tap - HSSE V3
Sutton T2982005 Metric Fine MF20 x 1 Straight Flute Tap - HSSE V3
Sutton T2982007 Metric Fine MF20 x 1.5 Straight Flute Tap - HSSE V3
Sutton T2982008 Metric Fine MF20 x 2 Straight Flute Tap - HSSE V3
Sutton T298 Metric Fine Straight Flute Tap - Premium HSS 1
Sutton T298 Metric Fine Straight Flute Tap - Premium HSS 2
Sutton T2980302 Metric Fine MF3 x 0.35 Straight Flute Tap - HSSE V3
Sutton T2980403 Metric Fine MF4 x 0.5 Straight Flute Tap - HSSE V3
Sutton T2980503 Metric Fine MF5 x 0.5 Straight Flute Tap - HSSE V3
Sutton T2980603 Metric Fine MF6 x 0.75 Straight Flute Tap - HSSE V3
Sutton T2980604 Metric Fine MF6 x 0.75 Straight Flute Tap - HSSE V3
Sutton T2980803 Metric Fine MF8 x 0.5 Straight Flute Tap - HSSE V3
Sutton T2980804 Metric Fine MF8 x 0.75 Straight Flute Tap - HSSE V3
Sutton T2980805 Metric Fine MF8 x 1 Straight Flute Tap - HSSE V3
Sutton T2981004 Metric Fine MF10 x 0.75 Straight Flute Tap - HSSE V3
Sutton T2981005 Metric Fine MF10 x 1 Straight Flute Tap - HSSE V3
Sutton T2981006 Metric Fine MF10 x 1.25 Straight Flute Tap - HSSE V3
Sutton T2981205 Metric Fine MF12 x 1 Straight Flute Tap - HSSE V3
Sutton T2981206 Metric Fine MF12 x 1.25 Straight Flute Tap - HSSE V3
Sutton T2981207 Metric Fine MF12 x 1.5 Straight Flute Tap - HSSE V3
Sutton T2981405 Metric Fine MF14 x 1 Straight Flute Tap - HSSE V3
Sutton T2981406 Metric Fine MF14 x 1.25 Straight Flute Tap - HSSE V3
Sutton T2981407 Metric Fine MF14 x 1.5 Straight Flute Tap - HSSE V3
Sutton T2981605 Metric Fine MF16 x 1 Straight Flute Tap - HSSE V3
Sutton T2981607 Metric Fine MF16 x 1.5 Straight Flute Tap - HSSE V3
Sutton T2981805 Metric Fine MF18 x 1 Straight Flute Tap - HSSE V3
Sutton T2981807 Metric Fine MF18 x 1.5 Straight Flute Tap - HSSE V3
Sutton T2981808 Metric Fine MF18 x 2 Straight Flute Tap - HSSE V3
Sutton T2982005 Metric Fine MF20 x 1 Straight Flute Tap - HSSE V3
Sutton T2982007 Metric Fine MF20 x 1.5 Straight Flute Tap - HSSE V3
Sutton T2982008 Metric Fine MF20 x 2 Straight Flute Tap - HSSE V3

Sutton T298 Metric Fine Straight Flute Tap - Premium HSS

Sutton T298 Metric Fine Straight Flute Tap - Premium HSS

SKU: A0014294

$47.07
$47.07
Inc. GST
Buy It Now

Available

The Sutton T298 Metric Fine Straight Flute Tap by Sutton Tools is a 0 straight flute tap made from Premium Grade High Speed Steel (HSSE-V3). It provides 0.75 mm pitch and is suitable for annealed non-alloy steel.

Resources

Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 1xD A
  • Shank Form: ISO Metric Fine (MF)
  • X: als
  • Type: Straight Flute
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 1xD A
  • Shank Form: ISO Metric Fine (MF)
  • X: als
  • Type: Straight Flute
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: Form C / 3 x P
  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
