Sutton T327 Metric Thread Forming Tap - 11% Cobalt Steel TiAIN1

Sutton T327 Metric Thread Forming Tap - 11% Cobalt Steel TiAIN2

Sutton T3270500 M5 x 0.8 Thread Forming Tap - 11% Cobalt Steel TiAIN

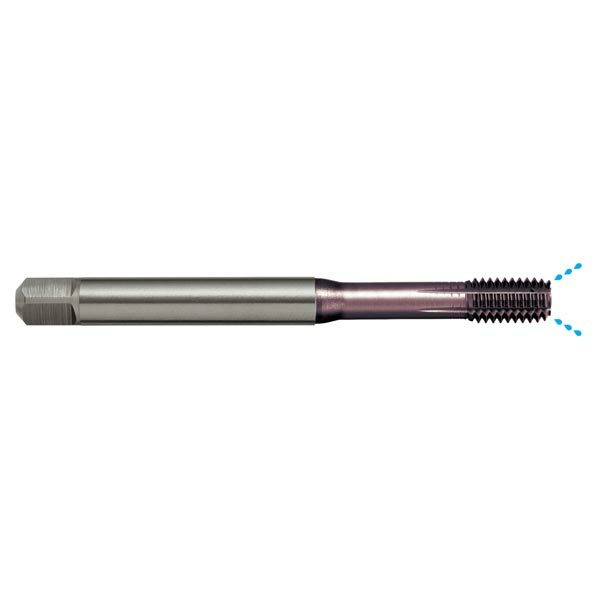

Sutton T3270600 Metric M6 x 1 Thread Forming Tap - 11% Cobalt Steel TiAIN

Sutton T3270800 M8 x 1.25 Thread Forming Tap - 11% Cobalt Steel TiAIN

Sutton T3271000 M10 x 1.5 Thread Forming Tap - 11% Cobalt Steel TiAIN

Specifications +

Dimensions

d1: M5
d2 (mm): 6
l1 (mm): 70
l2 (mm): 13
l3 (mm): 25
l4 (mm): 8
Square Size (mm): 4.9
Drill Size (mm): 4.6 (drill)
Pitch (mm): 0.8 (pitch)

Specifications

Designation: UNI (for normal general purpose type materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: ru
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C/0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

SPM for superior performance
Application specific geometry
Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton T327 Metric Thread Forming Tap - 11% Cobalt Steel TiAIN

SKU: A0014528

Type: Threading Die

$208.52

$208.52 ~~$297.89~~

Inc. GST

⚙Cobalt HSS Construction

⚙Sutton Metric Thread Forming

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1: M5
d2 (mm): 6
l1 (mm): 70
l2 (mm): 13
l3 (mm): 25
l4 (mm): 8
Square Size (mm): 4.9
Drill Size (mm): 4.6 (drill)
Pitch (mm): 0.8 (pitch)

Features

SPM for superior performance
Application specific geometry
Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Specifications

Designation: UNI (for normal general purpose type materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: ru
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C/0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
